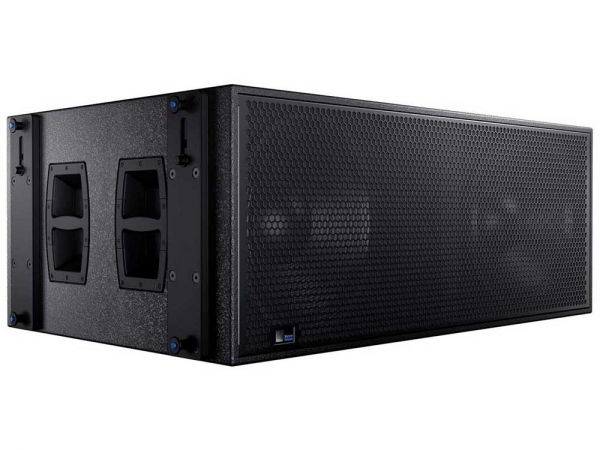

Meyer Sound 1100-LFC Used, Second hand

Ref. code: 1.03.307

1100-LFC : Low-Frequency Control Element

The 1100‑LFC low-frequency control element is a self-powered loudspeaker defined by its sonic linearity in reproducing lowfrequency transients at high continuous output levels with very low distortion. This ultra-low distortion, coupled with exceptional headroom and optimized rigging options, makes the 1100‑LFC a flexible tool for low-end directional applications for large-scale tours and installations.
To guarantee optimum performance, design 1100‑LFC systems with Meyer Sound’s MAPP system design tool. This intuitive, cross-platform application accurately predicts directional patterns, frequency and impulse responses, and linear peak SPL for 1100‑LFC systems, ensuring that systems deliver the required coverage and SPL.
An optimally tuned, vented cabinet houses the 1100‑LFC’s two 18-inch, long-excursion cone drivers. The loudspeaker’s 28 Hz to 100 Hz operating frequency range complements LEO, LEOPARD, LYON, JM‑1P, and other Meyer Sound loudspeakers, allowing it to integrate seamlessly with line arrays and curvilinear arrays.
The unit’s power amplifier operates at voltages from 208 to 235 V AC, at 50/60 Hz. TruPower limiting ensures maximum driver protection, minimizing power compression while yielding high constant output under high continuous and peak power conditions. A single, field-replaceable module located on the rear of the cabinet contains the amplifier, control electronics, and power supply.
The 1100-LFC cabinet includes protective plastic skids on the bottom that securely align with the cabinet’s top slots. Units are stackable normally or reversed for cardioid configurations. Meyer Sound tunes and vents the cabinet to specifically optimize it for low air velocities.

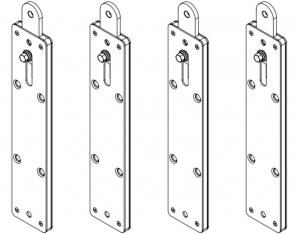

The optional MRK‑1100 rigging kit, available as a factory-installed option or field upgrade, includes captive GuideALinks that allow the loudspeaker to be flown from the MTG‑1100 top grid. Convenient pinned handles and slots make the GuideALinks, located at the front and rear of the cabinet, easy to set. The GuideALinks also accommodate reversed units for flown cardioid arrays.

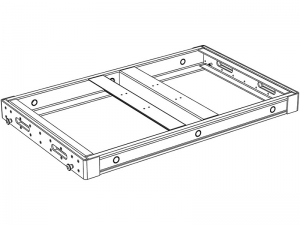

Suspend line arrays comprising up to 16 cabinets at a 5:1 safety factor and BGC V1 from the optional MTG‑1100 top grid. For touring and portable systems, the optional MCF‑1100 caster frame accommodates three-cabinet stacking of the 1100-LFC for secure travel. Optionally available durable nylon covers, accommodating stacks of two or three 1100-LFCs, ensure complete road-readiness.
Meyer Sound’s RMS remote monitoring system comes standard with all 1100‑LFCs and provides comprehensive monitoring of system parameters from a host computer running Compass control software via the RMS interface. Convenient 5-pin XLR connectors allow the use of composite cables carrying both balanced audio and RMS signals (3-pin XLR audio connectors are optionally available).
Meyer Sound constructs the 1100‑LFC cabinet with premium multi‑ply birch and coats it with a slightly textured black finish. A powder-coated, hex‑stamped steel grille with acoustical black mesh protects the unit’s drivers. Other options include weather protection and custom color finishes for fixed installations and applications with specific cosmetic requirements.

Features
  • High peak power output with low-frequency clarity and excellent transient reproduction at extreme levels
  • Linearity ensures low-frequency output with consistent directional properties in a variety of configurations at any level
  • Tuned, vented cabinet optimized for low air velocities
  • Stackable and flyable in regular and cardioid arrays
  • Seamlessly integrates with LEO, LYON, LEOPARD, and other Meyer Sound loudspeakers
Applications
  • Stadiums
  • Arenas
  • Concert halls
  • High-power, controlled-directivity arrays
