Used, Second hand CEDAR Audio DNS 8 Live Noise Suppressor - Used Audio, Lighting and Video Equipment

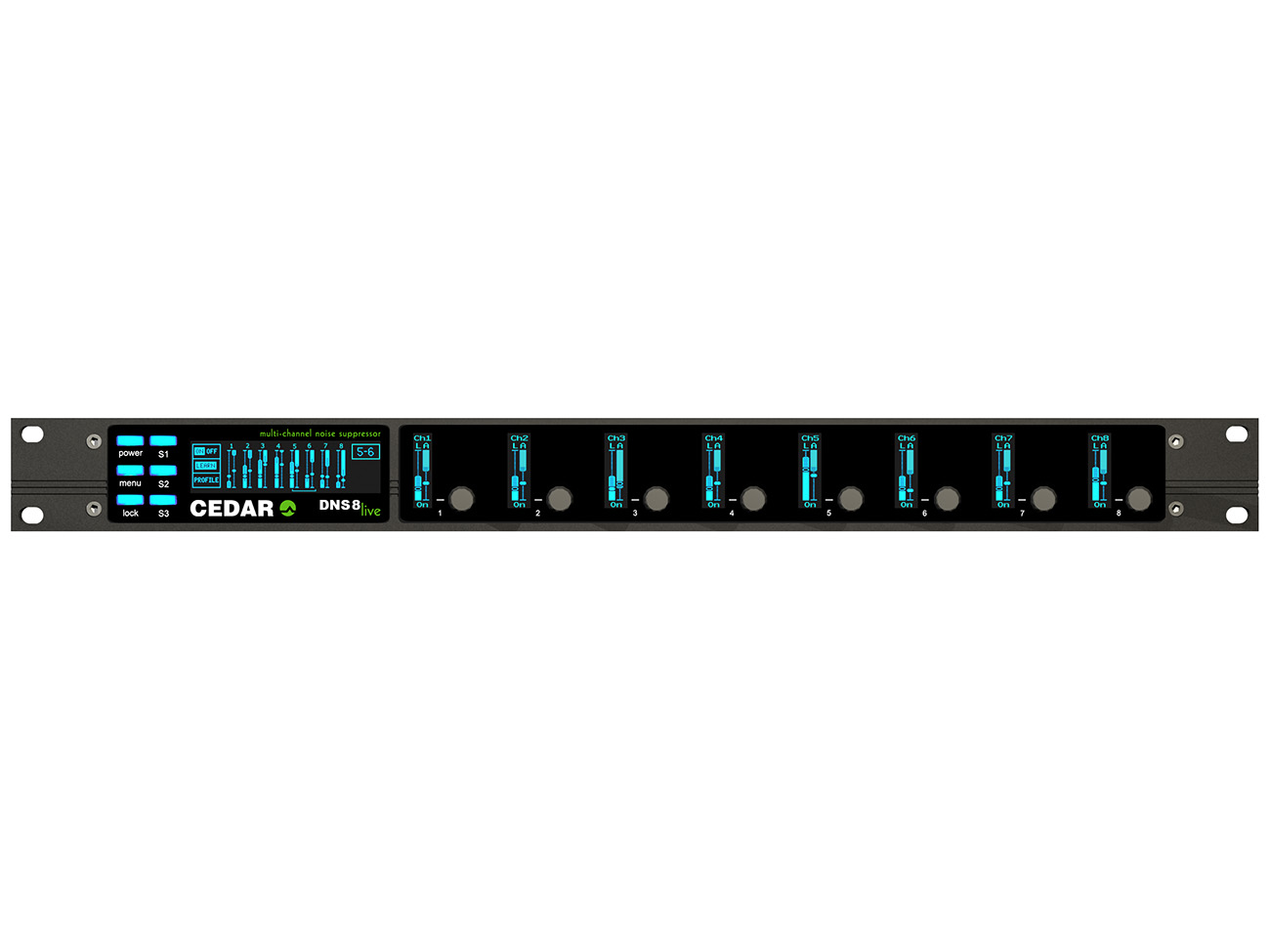

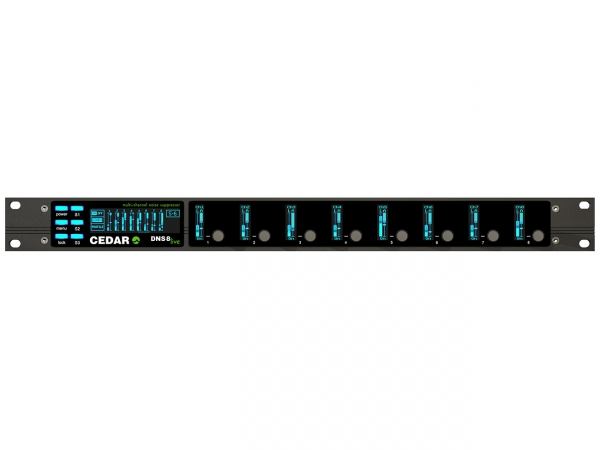

DNS 8 Live

Multi-Channel Dialogue Noise Suppressor

CEDAR's Dialogue Noise Suppression technology is the standard for removing background noise from dialogue, and the most powerful and effective way to clean dialogue in theatres, concert halls, conferences venues, and places of worship. With near-zero latency, 40-bit processing, and a fast, intuitive user interface, it eliminates traffic noise, air conditioning, wind, rain, babble and general background noise from audio signals. It will also help to compensate for unfavourable acoustic conditions and poor microphone placement, and will even suppress excessive reverberation.

The DNS 8 Live is the first DNS designed specifically for live broadcasting and live sound. With eight simultaneous channels of dialogue noise suppression (formatted as AES3 on XLR sockets plus DB25 using the AES59 pin-out) it hosts a new DNS algorithm boasting a simplified ƈ-knob' approach as well as a detailed editing mode that offers more control than any previous dialogue noise suppressor. Nonetheless, it retains the near-zero latency of all its predecessors, making it suitable for use in all live situations - not just broadcasting, but also live sound in venues such as theatres, concert halls, conferences venues, and places of worship.

But that's not the limit of the features offered by the DNS 8 Live. Recognising that many people will want to use it where there's no ready access to mains power, we have added a standard 4-pin 12VDC input.

The latest revision of the DNS 8 Live offers fail-safe audio bypass implemented in the form of hardware relays that immediately connect the inputs to the outputs in the event of a power failure or other significant disruption. This means that the DNS 8 Live can now be installed with confidence in critical paths within the broadcast chain.

We have also anticipated the needs of users who will want to control the DNS 8 Live using modern methods such as laptops, iPads and many other (perhaps as yet unseen) devices, so we gave it the ability to respond to a simple, web-based remote control interface. With its bundled DNS 8 RC software, the DNS 8 Live will work with almost any web browser.

Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.

Used CEDAR Audio

For more than thirty-five years, CEDAR Audio has led the world in audio restoration and noise suppression. We are the company that...

created the first real-time restoration systems, even while the world was telling us that it was impossible
created the world's first hardware-based restoration systems
invented digital dehissing that didn't require a spectral fingerprint
invented the first sub-sample phase/time correctors
invented the digital dialogue noise suppressor
invented the speed corrector that didn't need a guide tone
invented spectral editing - a technique now so common that people barely remember life without it

... and much more.

We are the recipients of an Emmy®, two Cinema Audio Society Awards, numerous other industry accolades and, of course, an Academy Award® for services to the movie industry. But we are active in many more fields than that, and are proud to include many of the world's most significant broadcasters, record companies, archives, law enforcement agencies and security organisations as customers and friends.

If you enjoy a trip to the movies, you're almost certainly listening to dialogue that has been cleaned up using CEDAR. When presenting Academy Awards to the designers of the first CEDAR DNS dialogue noise suppressors, the Academy said that CEDAR "... can be found on virtually all dubbing stages worldwide, and has become the tool of choice for removing unwanted noise by re-recording mixers everywhere."

If you listen to national radio stations or watch television anywhere in the world, the chances are that the audio has passed through a CEDAR system. From the newsrooms of major broadcasters to reality TV, to studio-based shows, to sporting events such as the Olympics, the FIFA World Cup, to Premier League football (and much more) CEDAR is the standard for zero-latency noise suppression.

In the traditional audio industry we have worked closely with the most famous studios, record companies and bands to ensure the highest quality audio, not just from vintage material but from audio recorded today that might suffer from some sort of noise problem.

If your interest lies in vintage audio, many of the world's archives rely on CEDAR. From simple plug-ins to rackmount hardware to the largest restoration systems that integrate with their media asset management (MAM) systems, CEDAR has solutions for the smallest to the largest archives and libraries.

CEDAR is a major supplier to the world's most important law enforcement, security and anti-terrorism forces. From front-line surveillance and rapid response systems to sophisticated laboratory-based audio forensic computers, we also work closely with drug enforcement agencies, customs and excise, and air and marine accident investigation services to help keep everyone safe.

In addition to its own products, CEDAR has written software for leading audio editing platforms and the company has also designed and manufactured audio hardware for OEM manufacturers, most notably for export from the UK to Japan.

Not content with all of this, CEDAR Audio is committed to furthering the science and art of audio restoration and speech enhancement in all of its forms and actively pursues research into new techniques in each of them. The company also places a premium on the highest standards of customer support and has earned numerous accolades in this area.

Many companies claim to be the best at what they do. Occasionally, it's true.

Octave: The difference between two frequencies where one is twice the other. For example, 200 Hz is an octave higher than 100 Hz. 400 Hz is one octave higher than 200 Hz.

Optical Digital Cable: Fiber optic cable that transfers digital audio signals as light pulses.

Outcue/Outq/Out-Point: These words all refer to the final few seconds of audio signifying the conclusion of the production.

Package: A completed and fully edited audio piece.

Passive: Not active. A passive crossover uses no external power and results in insertion loss. A passive speaker is one without internal amplification.

Phase: Time relationship between signals it’s all relative.

Power Output: A measure, usually in watts, of how much energy is modulated by a component.

Preamplifier: A control and switching component that may include equalization functions. The preamp comes in the signal chain before the amplifiers.

Pre Outs: Connectors that provide a line-level output of the internal preamp or surround processor.

Pre Outs/Main Ins: Connectors on a receiver that provide an interruptible signal loop between the output of the internal preamp or surround processor portion of the receiver and the input of the amplifier portion of the receiver.

Pre/Pro: A combination preamp and surround processor.

Processors: Anything that processes an incoming signal in some way. Surround processors, for example, can decode a Dolby Digital signal to send to an amp so you can hear it.

Pulse Code Modulation: (PCM) a way to convert sound or analog information to binary information (0s and 1s) by taking samples of the sound and record the resulting number as binary information. Used on all CDs, DVD-Audio, and just about every other digital audio format. It can sometimes be found on DVD-Video.

Q-and-A: Question and answer session.

Receiver: Any component that receives, or tunes, broadcast signals, be it NTSC, HDTV, DBS, or AM/FM radio. Typically refers to the single component that includes a preamp, surround processor, multichannel amplifier, and AM/FM tuner.

Reverberation: The reflections of sound within a closed space.

RF: Radio Frequency. Television signals are modulated onto RF signals and are then demodulated by your television’s tuner. VCRs and DBS receivers often include channel 3 or 4 modulators, allowing the output signal to be tuned by the television on those channels. Also, laser discs used an RF signal for modulating Dolby Digital 5.1 soundtracks on some movies. This requires an RF demodulator (usually referred to as an AC3-RF demodulator) before or in the surround processor to decode the signal.

RMS: Root Mean Square or the square root of the arithmetic mean (average) of the square’s set of values. A reasonably accurate method of describing an amplifier`s power output.

SACD: Super Audio CD. Enhanced audio format with up to six channels of high-resolution audio encoded using DSD. Requires an SACD player. Multichannel also requires a controller with six-channel analog or proprietary digital inputs for full playback.

Sampling Frequency: How often a digital sample is taken of an analog wave. The more samples taken, the more accurate the recording will be. You need to sample at a minimum of twice the highest frequency you want to capture. For example, the 44.1-kilohertz sampling rate of a CD cannot record sounds higher than 22.05 kilohertz.

Scener: A radio report in which the announcer is recorded at the same time and place as the background sound of an event.

Sensitivity: A measurement (in dB) of the sound-pressure level over a specified frequency range created by a speaker driven by 1 watt (2.83V at 8 ohms) of power with a microphone placed 1 meter away.

Signal-to-Noise Ratio: A comparison of the signal level relative to the noise level. Larger numbers are better.

Simultaneous Interpretation: This system allows attendees to hear the meeting in their own language.

Sound Bite: A portion of audio of someone speaking.

Sound field: The total acoustical characteristics of a space, such as ambience number, timing, and relative level of reflections ratio of direct to reflected sound RT-60 time etc.

Soundstage: The area between two speakers that appears to the listener to be occupied by sonic images. Like a real stage, a soundstage should have width, depth, and height.

Speaker: A component that converts electrical energy into acoustical energy.

SPL: Sound-Pressure Level. Measured in dB.

Subwoofer: A speaker designed to reproduce very low bass frequencies, usually those below about 80 Hz.

THX: Certification program for home theater equipment. Uses some proprietary features, but mostly assures a base quality level for a given room size. (See THX select or Ultra.) Is compatible with any and all soundtrack formats. Stands for either Tom Holman’s eXperiment, after the engineer who drafted the original standard, or is named after the company’s founder George Lucas first movie, THX 1138. Nobody agrees on which.

THX select: Certification program for speakers and receivers that assures a base level of quality and performance when played in a room that’s between 2,000 and 3,000 cubic feet.

User-Generated Content (UGC): Text, photos, video or audio supplied by the customers of a company.

Voicer: A radio report without background audio taken from a scene or otherwise.

Wrap: A radio report containing both the reporter and an actuality.
