ChamSys MagicQ MQ80 Used, Second hand

Ref. code: 2.01.335

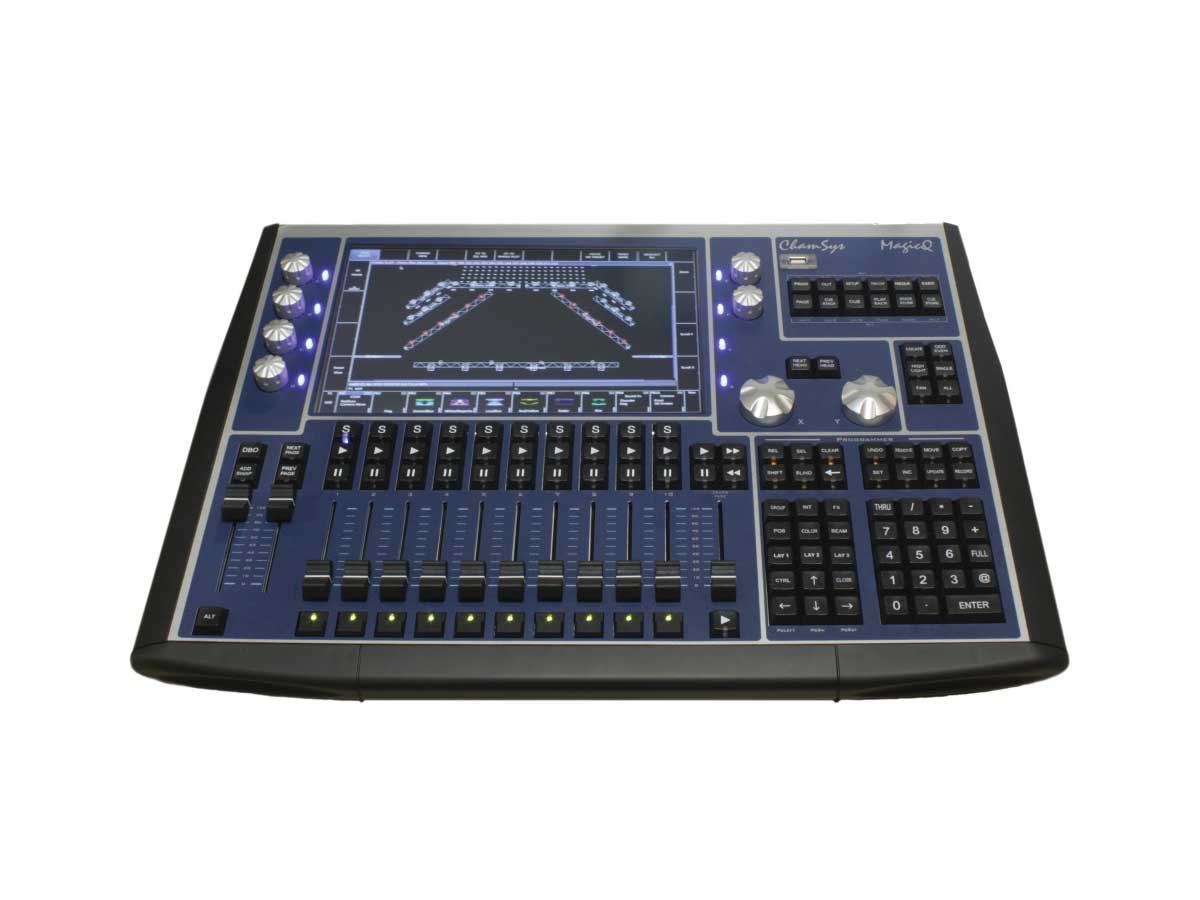

MagicQ MQ80

The MagicQ MQ80 is an extremely powerful console in a small size, supporting 24 universes direct from the console. The large central touch screen provides easy access to all MagicQ features and display and selection from full lighting plots.

  • 24 Universes
  • 10 Playback faders, 200 Pages
  • 20 execute buttons
  • 202 virtual playbacks
  • Internal Ethernet Switch
  • In-built UPS
  • External monitor (full HD, can be touch)
  • Includes MIDI, Audio and Timecode input support
  • Free MagicVis visualiser app
  • Free MagicHD media player app
  • Designed and manufactured in the UK

MagicQ MQ80 features the same flexible lighting control, media server connectivity and in-built Pixel Mapper found in all MagicQ consoles, and uses the same software and show formats, enabling compatibility between all MagicQ products. New shows can be loaded into MagicQ consoles running older software and old shows can be loaded into newer software.
MagicQ software features include easy patching from a library of 13000 fixture personalities, simple attribute selection and programming, flexible live lighting control and a powerful inbuilt Pixel Mapper.
MagicQ MQ80 can be connected via network to a PC or Mac running ChamSys free MagicVis lighting visualisation software for full visualisation of all the universes at no extra cost.
MagicQ MQ80 can also be connected via network to a PC or Mac running ChamSys free MagicHD media player software for output of up to 8 layers of HD media at no extra cost.
MagicQ MQ80 outputs all universes direct over Ethernet using Art-Net I, II or III, Pathport, or Streaming ACN ? there is no need for network nodes
MagicQ MQ80 incorporates high reliability components, including high durability metal Neutrik Ethercon locking connectors for easy and reliable networking. As with other MagicQ consoles, the Ethernet switch is protected by the UPS, thus ensuring that both the console and the network switch maintain operation even during a power loss.
MagicQ MQ80 features an inbuilt power supply and UPS with locking Powercon connectors that accept voltages from 110V to 240V AC. The MagicQ MQ80 has a Kensington security slot for securing the product. Both soft bags and flight cases are available as optional extras.

Features:
  • Quick and Easy to Program
  • Fully Featured Theatre Stacks
  • Advanced Media Server Support
  • Fixture Morphing & Cloning
  • LED Pixel Mapping
  • Fixture Plot View including Target Focus
  • Powerful PC/Mac Show Editor
  • Fixture, FX and Gel Library
  • In-built Fixture Editor
  • Fixture morphing and cloning
  • Tracking / non-tracking option
  • Rainbow colour picker (CMY, RGB, HSI)
  • Individual fade times on any channel
  • Easy fanning of parameters and times
  • Configurable faders - HTP, LTP, speed, size, masters
  • Theatre mark cues, split fades and inhibit masters
  • Client/Server network architecture
  • Multiple console playback tracking
  • Multiple console programming
  • In-built Web Server
  • Remote console control
  • Visualiser support (including patch transfer)
  • Architectural Zoning and Day/Date support
  • In-built UPS (5 minutes)
Specification:
  • Universes: 24
  • Channels: 12288
  • Number of fixtures: Up to 12288
  • Cues: 5000
  • Cue stacks: 2000
  • Palettes: 4096
  • Groups: 5000
  • Numbers of shows: Virtually unlimited
  • Media server support: 50 (each different content)
  • Encoders: 8
  • Faders: 13
  • Direct DMX ports: 4
  • Network ports: 4
  • External monitor: Up to 1920x1200
  • Internal monitor resolution: 1280x800
  • USB ports: 6 (including 1 on front panel for easy access)
  • Audio input (1 channel, 7 band)
  • MIDI Notes in/out
  • LTC input
  • Inbuilt UPS
  • Variable Speed Fan
  • Dual Colour Desk lamp
  • Illuminated soft buttons
  • Dust cover
  • Power input: 110 to 240 VAC
  • Width: 570mm (22.5")
  • Depth: 405mm (15.9")
  • Height: 110mm (4.3")
  • Weight: 8kg (17.5lb)
Flightcased Dimensions:
  • Width: 660mm (26")
  • Depth: 505mm (19.9")
  • Height: 235mm (9.3")
  • Weight: 20kg (44lb)
Padded Bag Dimensions:
  • Width: 640mm (25.2")
  • Depth: 460mm (18.1")
  • Height: 225mm (8.9")
