d&b audiotechnik Q1-Q7-Q-SUB-B2 Sound Package Used, Second hand

Ref. code: 1.01.378

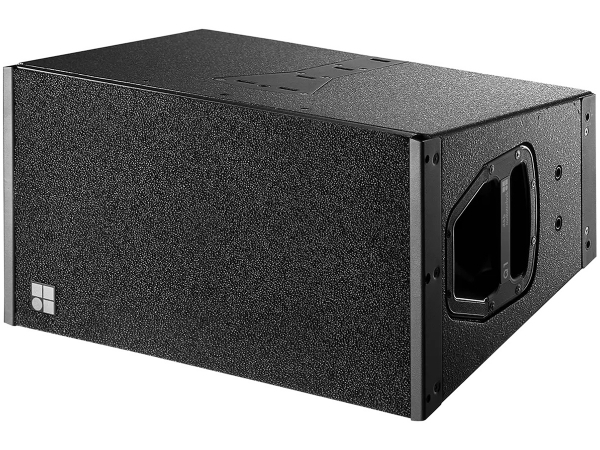

Q1

The Q1 is a passive 2-way loudspeaker housing two 10" LF drivers positioned in a dipolar arrangement and a 1.3" HF compression driver fitted to a toroidal waveshaping device. The 75° constant directivity horizontal dispersion pattern is maintained down to 400 Hz, while the vertical HF dispersion of 15° allows the Q1 to be used to construct vertical columns that produce a curved coherent wavefront. The mechanical and acoustical design of the cabinet enables vertical splay angles to be set between 0° and 14°. Q1 cabinets can therefore be used in vertical configurations starting from two cabinets with a 15° to 30° dispersion, up to 20 cabinets with a fully user and venue defined vertical profile.
The Q1 cabinet is constructed from marine plywood, incorporates a pair of handles and has an impact resistant paint finish. The front of the loudspeaker is protected by a rigid metal grill covered with replaceable acoustically transparent foam, and two EP5 or NL4 connectors wired in parallel are mounted on the rear panel.

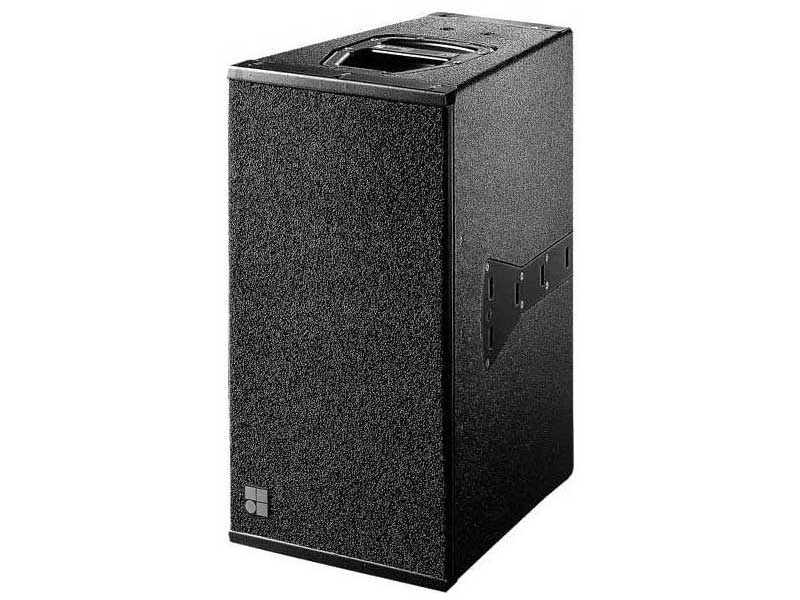

Q7

The Q7 is a 75° x 40° passive 2-way loudspeaker housing two 10" LF drivers and a 1.3" HF compression driver with a rotatable constant directivity horn and a passive crossover network. The two 10" neodymium LF drivers are positioned in a dipolar arrangement providing exceptional vertical dispersion control with the nominal angle being maintained down to 400 Hz. The Q7 with the horn rotated is used to mount the loudspeaker horizontally where space is limited, or the maximum horizontal pattern control is needed and when added to the bottom of Q1 arrays. The Q7 can be used as a stand-alone full range system, in combination with other Q-Series cabinets ground stacked or mounted on a high stand with a swivel bracket. They can also be combined in flown array systems. The Q7 cabinet is constructed from marine plywood and has an impact resistant paint finish. The front of the loudspeaker cabinet is protected by a rigid metal grill, covered with a replaceable acoustically transparent foam. The cabinet incorporates a pair of handles and mounted on the rear panel are two EP5 or NL4 connectors wired in parallel.

  • Components 2 x 10"/1.3"
  • Dispersion 75° x 40° CD
  • max SPL 138 dB

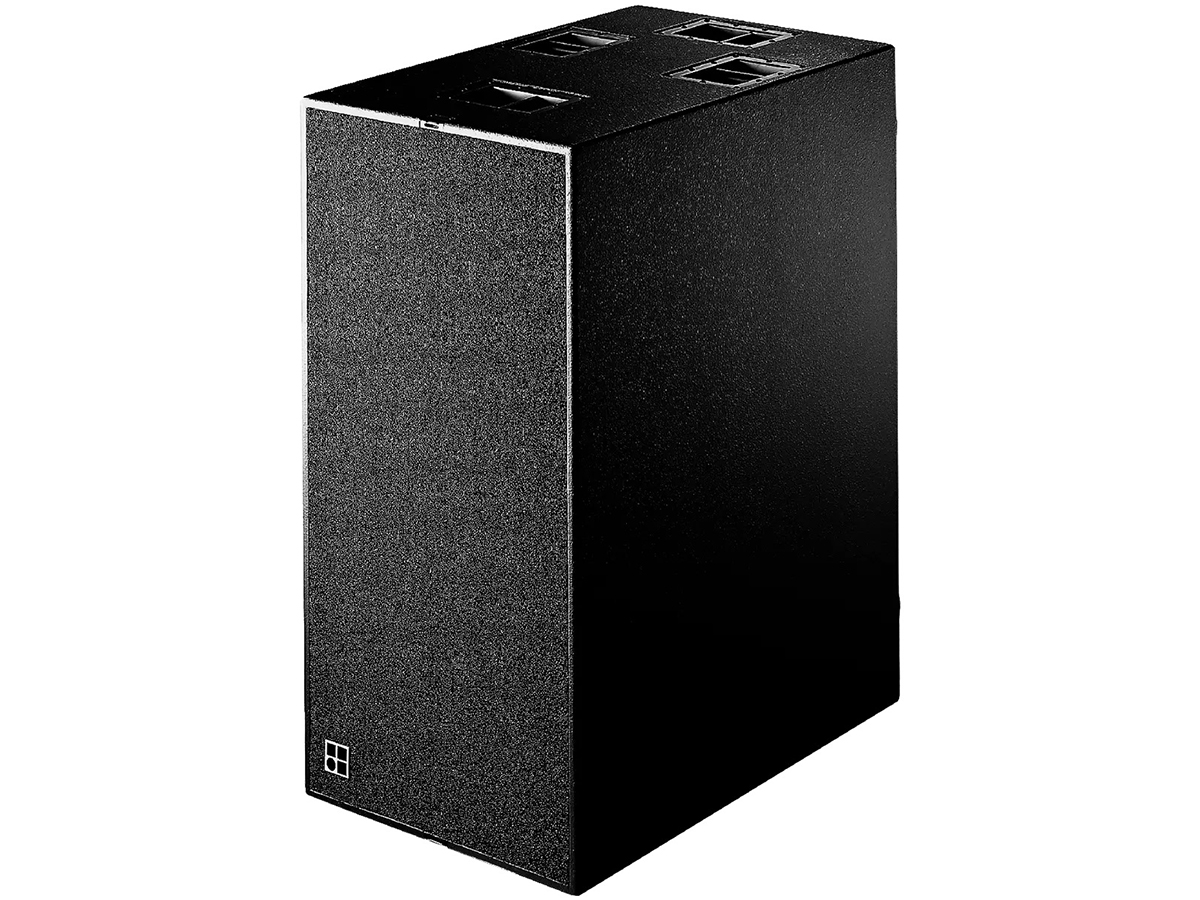

Q-SUB

The Q-SUB is an actively driven low compression bass-reflex loudspeaker fitted with a high excursion 18" driver. d&b SenseDrive technology is available when powered by the D12 amplifier. The Q-SUB is mechanically compatible with the Q1 and Q7; ten sockets in the front grill and side panels for Q-Series rigging components permit use in various combinations, either flown or ground stacked.
The Q-SUB cabinet is constructed from marine plywood with an impact resistant paint finish, a pair of handles, four heavy duty wheels and an M20 threaded flange in the top panel to accept a loudspeaker stand. The front of the loudspeaker cabinet is protected by a rigid metal grill covered with replaceable acoustically transparent foam and two EP5 or NL4 connectors wired in parallel are mounted on the rear panel. Two runners protect the bottom of the cabinet from scratching; these are located in correspondingly shaped recesses in the top panel to prevent movement when stacked.


Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.

Used d&b audiotechnik

d&b audiotechnik is a German loudspeaker and amplifier manufacturer, founded in 1981, located in Backnang, north of Stuttgart. Although d&b is an international company with subsidiaries in Europe, America and Asia their products are engineered and produced only in Germany.
d&b loudspeakers are used in rental and installation markets for events, multimedia, musicals, concert halls, theatres, opera houses, broadcast and everything from the small conference rooms to the large-scale stadiums.
Their claimed unique sales proposition is that they augment the volume, or hearability, of a speaker or musician, but not the quality of the sound. They supposedly achieve this flat response through digital signal processing (DSP) so that profile changes introduced by loud speakers and other audio components are compensated for and thus eliminated.


Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.

Octave: The difference between two frequencies where one is twice the other. For example, 200 Hz is an octave higher than 100 Hz. 400 Hz is one octave higher than 200 Hz.

Optical Digital Cable: Fiber optic cable that transfers digital audio signals as light pulses.

Outcue/Outq/Out-Point: These words all refer to the final few seconds of audio signifying the conclusion of the production.

Package: A completed and fully edited audio piece.

Passive: Not active. A passive crossover uses no external power and results in insertion loss. A passive speaker is one without internal amplification.

Phase: Time relationship between signals it’s all relative.

Power Output: A measure, usually in watts, of how much energy is modulated by a component.

Preamplifier: A control and switching component that may include equalization functions. The preamp comes in the signal chain before the amplifiers.

Pre Outs: Connectors that provide a line-level output of the internal preamp or surround processor.

Pre Outs/Main Ins: Connectors on a receiver that provide an interruptible signal loop between the output of the internal preamp or surround processor portion of the receiver and the input of the amplifier portion of the receiver.

Pre/Pro: A combination preamp and surround processor.

Processors: Anything that processes an incoming signal in some way. Surround processors, for example, can decode a Dolby Digital signal to send to an amp so you can hear it.

Pulse Code Modulation: (PCM) a way to convert sound or analog information to binary information (0s and 1s) by taking samples of the sound and record the resulting number as binary information. Used on all CDs, DVD-Audio, and just about every other digital audio format. It can sometimes be found on DVD-Video.

Q-and-A: Question and answer session.

Receiver: Any component that receives, or tunes, broadcast signals, be it NTSC, HDTV, DBS, or AM/FM radio. Typically refers to the single component that includes a preamp, surround processor, multichannel amplifier, and AM/FM tuner.

Reverberation: The reflections of sound within a closed space.

RF: Radio Frequency. Television signals are modulated onto RF signals and are then demodulated by your television’s tuner. VCRs and DBS receivers often include channel 3 or 4 modulators, allowing the output signal to be tuned by the television on those channels. Also, laser discs used an RF signal for modulating Dolby Digital 5.1 soundtracks on some movies. This requires an RF demodulator (usually referred to as an AC3-RF demodulator) before or in the surround processor to decode the signal.

RMS: Root Mean Square or the square root of the arithmetic mean (average) of the square’s set of values. A reasonably accurate method of describing an amplifier`s power output.

SACD: Super Audio CD. Enhanced audio format with up to six channels of high-resolution audio encoded using DSD. Requires an SACD player. Multichannel also requires a controller with six-channel analog or proprietary digital inputs for full playback.

Sampling Frequency: How often a digital sample is taken of an analog wave. The more samples taken, the more accurate the recording will be. You need to sample at a minimum of twice the highest frequency you want to capture. For example, the 44.1-kilohertz sampling rate of a CD cannot record sounds higher than 22.05 kilohertz.

Scener: A radio report in which the announcer is recorded at the same time and place as the background sound of an event.

Sensitivity: A measurement (in dB) of the sound-pressure level over a specified frequency range created by a speaker driven by 1 watt (2.83V at 8 ohms) of power with a microphone placed 1 meter away.

Signal-to-Noise Ratio: A comparison of the signal level relative to the noise level. Larger numbers are better.

Simultaneous Interpretation: This system allows attendees to hear the meeting in their own language.

Sound Bite: A portion of audio of someone speaking.

Sound field: The total acoustical characteristics of a space, such as ambience number, timing, and relative level of reflections ratio of direct to reflected sound RT-60 time etc.

Soundstage: The area between two speakers that appears to the listener to be occupied by sonic images. Like a real stage, a soundstage should have width, depth, and height.

Speaker: A component that converts electrical energy into acoustical energy.

SPL: Sound-Pressure Level. Measured in dB.

Subwoofer: A speaker designed to reproduce very low bass frequencies, usually those below about 80 Hz.

THX: Certification program for home theater equipment. Uses some proprietary features, but mostly assures a base quality level for a given room size. (See THX select or Ultra.) Is compatible with any and all soundtrack formats. Stands for either Tom Holman’s eXperiment, after the engineer who drafted the original standard, or is named after the company’s founder George Lucas first movie, THX 1138. Nobody agrees on which.

THX select: Certification program for speakers and receivers that assures a base level of quality and performance when played in a room that’s between 2,000 and 3,000 cubic feet.

User-Generated Content (UGC): Text, photos, video or audio supplied by the customers of a company.

Voicer: A radio report without background audio taken from a scene or otherwise.

Wrap: A radio report containing both the reporter and an actuality.
