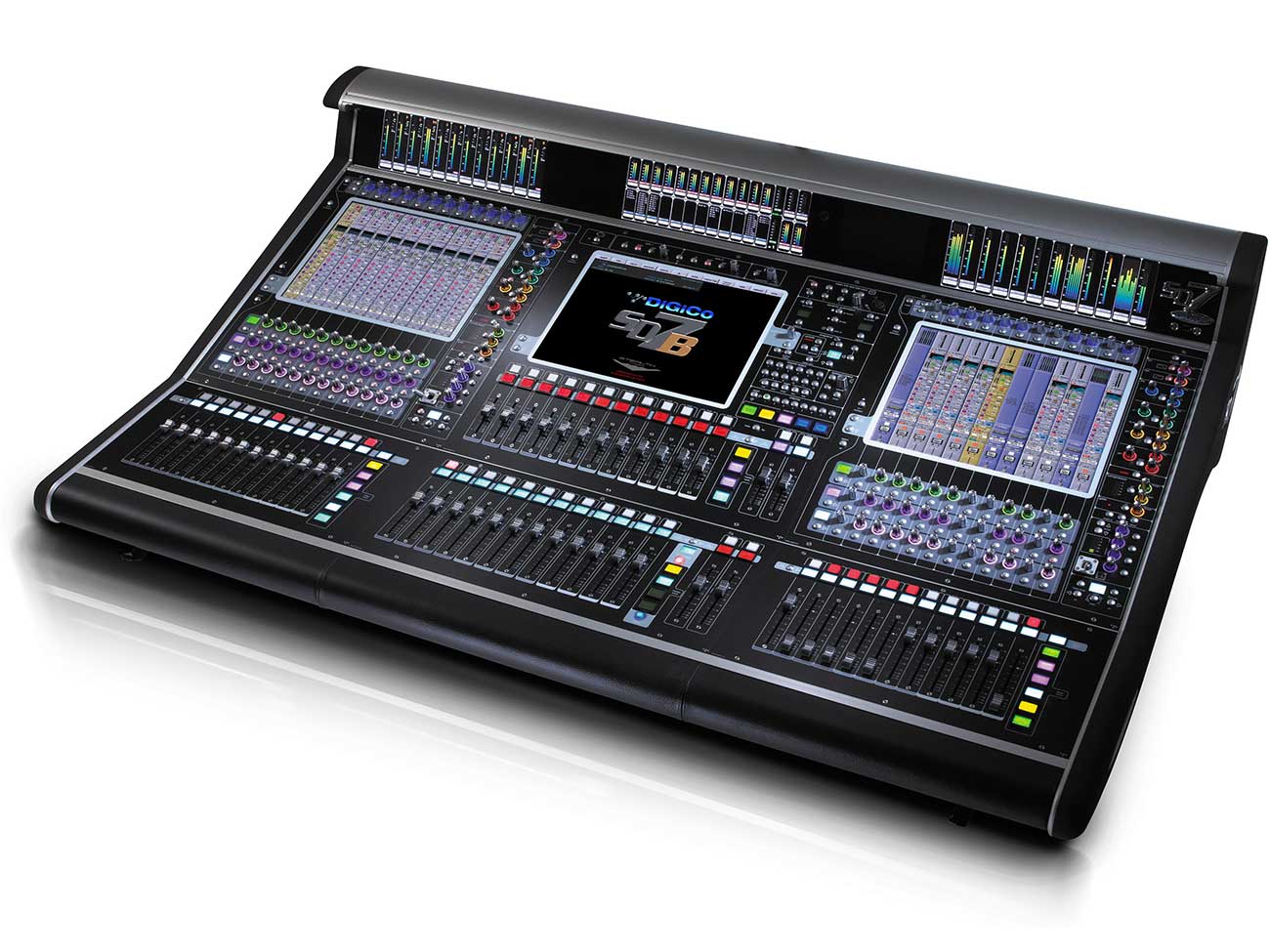

DiGiCo SD7B Used, Second hand

Ref. code: 1.06.347

SD7B

Mind-blowing I/O

The console that gives you everything you could ask for and more, the DiGiCo SD7B combines the power of Stealth Digital Processing and Super FPGA technology with a benchmark line-up of features for the broadcast environment.
Boasting full Flexi channel capability and vastly increased routing flexibility for LCRS and 5.1 mixes, the SD7B is more than a match for the most challenging of broadcast applications. Features include a complete 5.1 monitor matrix with 48×6 source-to-speaker selection multi-channel folding user-defined stem order selection Mix Minus busses (one per mono channel) backstop PFL (over press) and Auto PFL and Audio Follow Video implementation.
All of that power sits beneath your fingertips when you sit before the iconic SD7B work surface, equipped with three touchscreens, each accommodating a bank of 12 faders, plus 16 assignable faders in the centre. The resulting workflow is as innovative as it is intuitive and practical, with HD meter bridges and colour-coded knobs to ensure at-a-glance operation. You can even choose to expand your fader count with the DiGiCo EX-007 Fader Expansion Unit, while two EX-007s can be connected via Cat5e for either remote control or an expanded fader-count of 100.

Under The Hood
With a massive 256 processing paths at 48kHz/96kHz, the SD7B is the Einstein of digital mixing platforms.
Standard channel processing, whether inputs or outputs, includes Channel Delay, DiGiTuBe, Single and Multi-Channel Presets, Hi- and Lo-pass filters @ 24dB/octave, four-band parametric EQ (eight on outputs) with band curve selection and Dynamic EQ on each band, Dual insert points, and DiGiCo’s DYN 1 (Compressor, De-esser or Multiband Compressor) and DYN 2 (Gate, Compressor or Ducker).
Incorporated within the master section are 32 gangable 32-band graphic EQs, 48 stereo effects, and 36 control groups (VCAs). Using snapshots, engineers can switch between complete configurations in any live environment at the press of a button – during rehearsals, setup or even during a show.
In addition, the SD7B’s 128 busses can be assigned as mono/stereo groups or auxiliary busses, while further configurability is available courtesy of a 32 x 32 output matrix , dual solo busses, and a Master buss. Unlike all other digital console manufacturers, you don’t lose Aux or Group Busses when using the Matrix as they are in addition, including the Master buss.
I/O
The SD7B is renowned for its heavyweight I/O, and with good reason in the shape of 12 analogue inputs, 12 analogue outputs and 12 AES I/O (mono). With the second engine you benefit from four redundant MADI ports per engine, and one Optocore loop, as standard. This equates to an incredible 1,392 I/O connections on a single optic loop with just one work surface.
Get instant access to 32 fully integrated low-latency Waves stereo MultiRacks, each with up to eight plug-ins per rack, by fitting an optional DiGiCo SoundGrid module linked to external SoundGrid or DiGiGrid servers, giving a total of 128 additional I/O.

Features
  • Faders 38 x 100mm touch-sensitive, motorised + 14 x 60mm touch sensitive, motorised
  • Screens 3 x 15” LCD high – resolution touch screens
  • Meterbridge 3 x Custom Mounted LCD high-resolution TFT-LCD screens
  • Redundancy Internal removable engine x 2
  • Internal hot-swappable PSU x 2
  • Processing Channels Up to 256 (combination of Input Channels / Aux / Solo Group Busses)
  • Busses Up to 128 plus masters Aux / Group busses with full processing – LR/LCR/5.1 Master Buss
  • Matrix Up to 32 Input / 32 Outputs with full processing
  • Control Groups Up to 36, selectable for VCA-style, Moving fader, Mute Group
  • Graphic Eq 32 x 32-band, Gain +/- 12dB
  • Internal FX Up to 48 stereo effects comprising 16 floating point reverbs and 32 delay/chorus/pitch/enhancer
  • Local I/O 12 x mic/line I/O, 12 x AES I/O
  • MADI interface 4 redundant interfaces, BNC connectivity
  • Standard Optics (Dual Loop – Optional)
  • Sampling rates 48kHz / 96kHz
  • GPIO: 2 x DSub37 – 16 as standard, expandable to 32
  • Video Inputs x 2, Outputs x 2
  • Ext Sync Wordclock, AES, Video, MADI, Optics
  • SD7B Dimensions: 1496mm (w) x 875mm (d) x 503mm (h)
  • SD7B Weight 141Kg / 311lbs (245Kg / 540 lbs. with flightcase)
  • SD7B Flightcase: 1600mm (w) x 600mm (d) x 1240mm (h)
  • Power Requirements 90V-260V, 50-60Hz, 600VA

Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.

Used DiGiCo


DiGiCo is a British company, founded in 2002, that manufactures digital mixing consoles targeted for live audio mixing applications.DiGiCo's most current console lineup comprises the SD-Series of consoles, powered by Stealth Digital Processing.
Pioneered with their flagship SD7, Stealth Digital Processing describes DiGiCo's first use of a single large scale FPGA for audio processing. Combined with Tiger SHARC DSP chips for effects processing and control, this new technology allows an entire audio engine to occupy only a single PCB.
The SD7 continues to be the flagship of the range, with consoles derived from it targeting other market areas and sizes of application. Currently the rest of the range comprises the SD5, SD10, SD8, SD9 and rack-mountable SD11, listed in order of size. T (Theatre) and B (Broadcast) software is also available for selected consoles.
The use of a flexible FPGA processing engine allows dedicated software to be written, to further refine the consoles features and operation for specific applications. The SD7, SD10 and SD9 are available with the optional theatre upgrade package, with the SD7, SD5, SD10, SD9 and SD11 having the option of a broadcast package.
Legacy DiGiCo consoles include the D1 and D5 Live platforms, as well as the D5T theatre console and DS00 studio production and broadcast console. The D-Series of consoles used a modular DSP engine, combining multiple SHARC DSP chips to form a large scale audio engine, still the method by which virtually all digital console manufacturers design their products.
