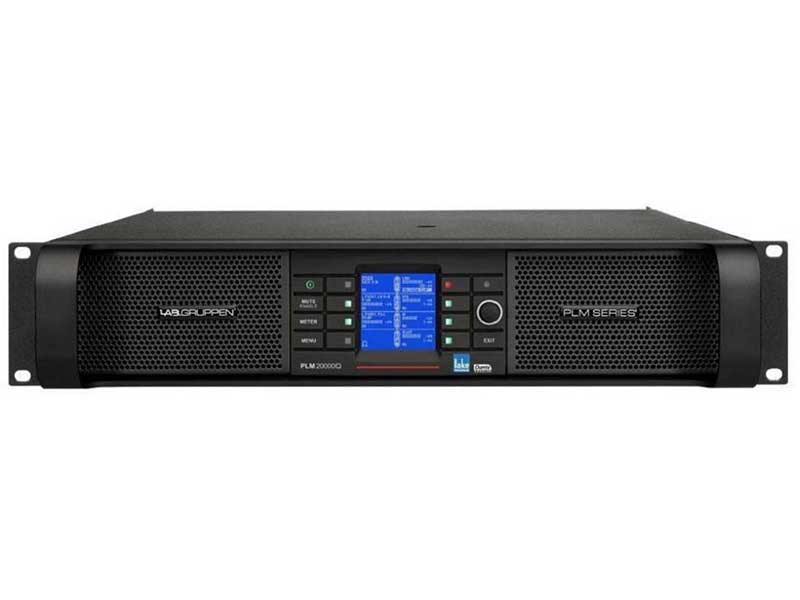

LAB.Gruppen PLM 20000Q Used, Second hand

Ref. code: 1.07.144

PLM 20000Q

The PLM 20000Q Powered Loudspeaker Management system seamlessly integrates an extraordinarily powerful four-channel amplifier platform with Lake? Processing, Dante networked signal distribution.

Power Amplifier

The power amplifier platform of the PLM 20000Q integrates several new developments to maintain reliable, sustained output at unprecedented power levels. The Regulated Switch Mode Power Supply (R.SMPS) is a new universal design that connects to any mains supply in the world. (Operating range is 100 V - 265 V, but new Under Voltage Limiting extends operation down to 65 V with reduced output power.) The design also incorporates power factor correction (PFC) to reduce peak current draw from the mains.

Load Verification and Continuous Performance Monitoring

The PLM 20000Q includes a revolutionary set of tools for accurate load verification and real-time performance monitoring. The key to both features is LoadLibrary, a comprehensive database that provides unique ?Fingerprints? (load characteristics) for each loudspeaker model in the system.

Lake Processing

The PLM 20000Q contains two Lake Processing modules, each offering precise settings for gain, delay, crossover slope, equalization, and limiting. Exclusive Lake Processing algorithms are included for Raised Cosine Equalization, linear phase crossovers, LimiterMax loudspeaker protection, and Iso-Float ground isolation. Raised Cosine Equalization is the foundation for the Lake Mesa EQ and the Ideal Graphic EQ. Mesa EQ offers asymmetric filtering to match the asymmetric responses of many loudspeaker systems the Ideal Graphic EQ offers true sum-to-flat response, so the adjustments provide uniform boost and cut along with greater selectivity.

Lake Controller Software

Lake Controller software provides a unified interface for control and monitoring of all functions of the PLM 20000Q. In addition to controlling all parameters of standard Lake Processing, new versions also provide control and monitoring of exclusive PLM features: digital input gain and attenuation, and load verification and performance monitoring via LoadSmart and SpeakerSafe. The Lake Controller software is optimized for a wireless Tablet PC. The same Lake Controller interface can be used to operate Dolby Lake Processors, Lake Contour, and Lake Mesa Quad EQ processors as part of a unified system.

Dante Digital Audio Network

PLM Series Powered Loudspeaker Management systems are equipped with Dante, a self-configuring digital audio networking solution from Audinate of Australia. Based on the newest developments in networking technology, Dante provides reliable, sampleaccurate audio distribution over Ethernet with extremely low latency. Dante incorporates Zen, an automatic device discovery and system configuration protocol which enables PLM Series products and other Dante-enabled products to find each other on the network and configure themselves.

Tech Spec Overview
  • 5000 W per channel @ 2.2 ? 3.3 ohms
  • 4400 W per channel @ 4 ohms
  • 2U chassis weighing only 17 kg (37 lbs)
  • Class TD output stage
  • Universal (70 - 265 V) Regulated Switch Mode Power Supply (R.SMPS) works anywhere in the world
  • Power factor correction (PFC) helps maintain full output during extended power bursts
  • Copper-finned Intercooler with transverse-mounted output devices
  • Comprehensive loudspeaker preset database
  • LoadSmart load verification and SpeakerSafe continuous loudspeaker performance monitoring
  • Dante low-latency digital network included as standard
  • Compatible with Lake LM 26, Dolby Lake Processor and other legacy Lake devices
  • Primary and secondary network connections
  • Digitally controlled ?amplifier gain? adjustable in 0.1 dB steps
  • Digital output attenuation in 0.25 dB steps from -inf to 0 dB
  • Binding post or Neutrik speakON output connectors
  • Digitally implemented, zero-overshoot Inter-Sample Voltage Peak Limiting (ISVPL) adjustable in 0.1 V steps from 17.8 to 194 V
  • Power Average Limiter (PAL) with software-controlled Breaker Emulation Limiter (BEL) prevents mains fuse tripping
  • Under-Voltage Limiting (UVL) enables continued operation with mains voltage sags as low as 65 V
  • High-brightness front-panel LCD display
  • Moisture resistant silicone touchpad

Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.

Used LAB.Gruppen


LAB.Gruppen is a Swedish sound equipment company, based in Kungsbacka, Sweden, dedicated to building mainly public address power amplifiers. It is owned by Music Group which also holds Midas, Behringer, Turbosound, TC Electronics and others. As of 2007 the company had 130 employees.
Kenneth Andersson and Dan Bävholm founded Lab.gruppen in 1979. They first met as schoolboys when they shared an interest in electronics.Andersson and Bävholm's first project was a hand-made mixing console. It was used as part of the Front of House equipment for a concert by Eartha Kitt. They created other mixers and a series of guitar heads and combos. Their intermittent manufacture of mixers and guitar amplifiers continued through the formal establishment of Lab.gruppen in 1979.
The company was located inside a local hi-fi store, where the duo serviced consumer equipment for additional income. It was here that the company's first professional audio power amplifier was created.
Between the LAB 4000 and FP Series 6400, Lab.gruppen engineers continued to advance and refine their products. The LAB Series was overhauled and augmented and subsequently became the FP range. FP designs were upgraded to meet the stringent new EMC standards in Europe, and adoption of UL safety standards allowed them to be sold in the United States. Standardization of internal components between models increased manufacturing efficiency to keep pricing competitive in all new markets.
In the late 1990s, the founders brought in new ownership and a managing director. In July 2000, Lab.gruppen was acquired by the TGI Group of the United Kingdom, and a few months later Tomas Lilja was chosen as managing director.
In early 2002, the TGI Group was acquired by TC Group of Denmark, the current corporate owner. In 2004, the company moved to its new location at Faktorvägen. Both Andersson and Bävholm remained with the company following the acquisitions.
In 1998, Lab.gruppen engineers undertook the long-term development of a new amplifier platform. The complete range would have four bridgeable amplifier channels and an integrated monitoring and control network. The basic technology of both the power supply and output stages was taken from the proven FP range, but with significant upgrades to reduce the number of components required.
Designated the C Series and targeted at the installation market, the first amplifiers of this design were shipped in the summer of 2005. This was followed up by the release of FP+ in 2006 and PLM Series in 2007.
The PLM Series was the first Lake processor with integrated amplification and it as it was embraced by the market Lab.gruppen acquired the exclusive rights to the Lake brand and the Lake processing for professional applications in touring and fixed installations late 2008.
The E Series was the first amplifier range with more than 200 W per channel that got the Energy Star approval when it was launched in 2011. More amplifiers with Energy Star were added with the LUCIA models in 2013.
In 2014, Lab.gruppen launched D Series for installations with audio over the network and PLM+, a successor to PLM Series.
In 2015, Lab.gruppen and the other brands of TC Group were acquired by Music Group.
In 2016, Lab.gruppen expanded the E and LUCIA product lines so that there are now 15 models with Energy Star.
