Meyer Sound Acheron 100 Used, Second hand

Ref. code: 1.04.460

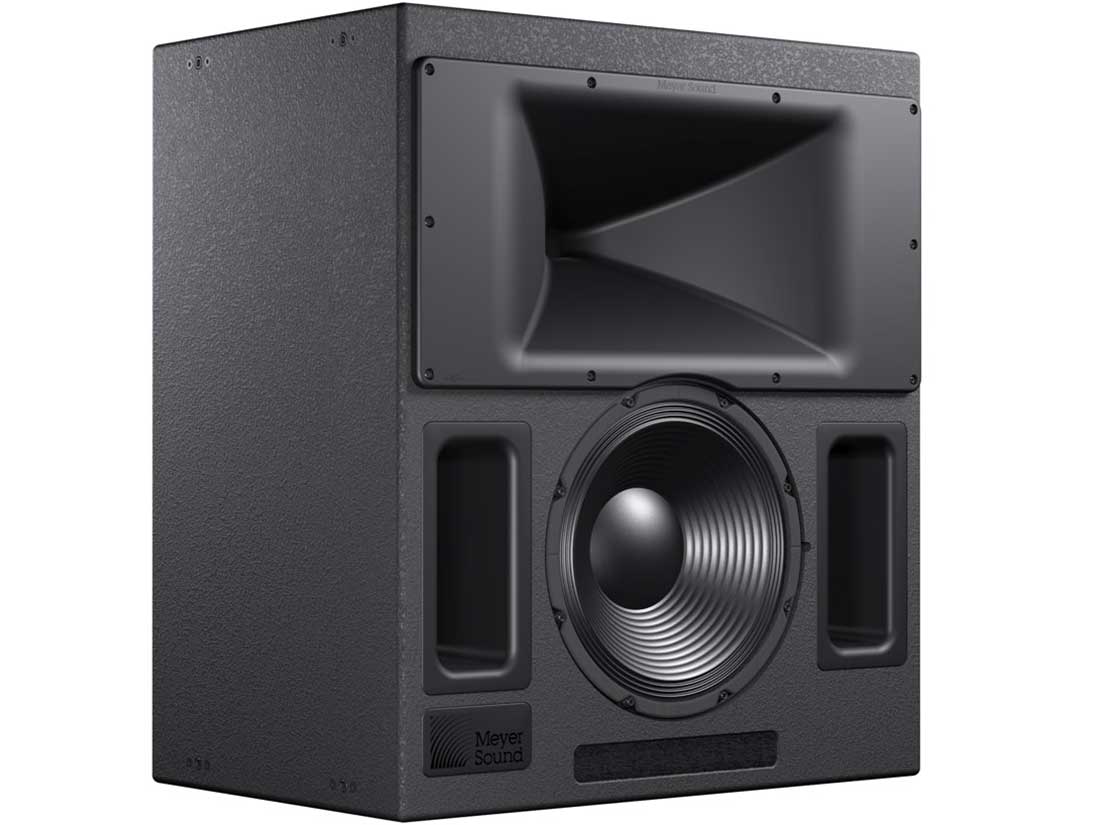

Acheron 100 : Screen Channel Loudspeaker


At the heart of Meyer Sound’s EXP line of cinema products is the Acheron high-performance screen channel loudspeaker. Optimized for installation behind perforated screens, the two-way loudspeaker combines the advantages of self-powered technology and innovative horn design to deliver exceptional, precise coverage for the left, right, and center sound channels of cinema.
The Acheron loudspeaker is available in two full-range models: the Acheron 100, with a 100° horizontal by 50° vertical horn, which is ideal for wide theaters and the Acheron 80, with an 80° horizontal by 50° vertical horn, which is suitable for narrower theaters and re-recording stages.
The Acheron horn was specifically designed for cinema use and features a very soft roll-off outside the extremely well-behaved coverage angle. The horn is fixed within the enclosure to ensure an accurate acoustic crossover, phase response, and an incredibly consistent vertical pattern between the low and high frequencies. The Acheron’s 580 Hz crossover point places most of the dialog in the horn, which is ideal for cinema applications.
Boasting a frequency response of 38 Hz to 17 kHz at ±4 dB, as well as a linear peak SPL of 135 dB with crest factor of 18.5 dB (measured with M-noise) with very low distortion, the Acheron stands up to the most demanding of digital soundtracks, maintaining a wide dynamic range and full fidelity. Designed and manufactured at Meyer Sound’s headquarters in Berkeley, California, the Acheron’s drivers include one 15-inch low-frequency neodymium magnet cone driver and one high-frequency 4-inch diaphragm compression driver. The drivers yield uncompromising quality and full bandwidth, making the Acheron suitable for small and medium theaters, re-recording stages, and production and postproduction facilities.
The Acheron’s sophisticated onboard amplification produces consistent and predictable results in any system design. The proprietary Meyer Sound power amplifier is a two-channel, class AB/H amplifier with complementary MOSFET output stages that yields a total output of 1685 W (3370 W peak). Built-in signal processing includes an electronic crossover and correction filters—to achieve a flat phase and frequency response—along with driver protection circuitry. The self-powered design not only ensures consistent results but also simplifies installation in both new and existing rooms.
The optional RMS remote monitoring system allows comprehensive monitoring of system parameters from a host computer running Compass software.
Strategically placed 3/8-inch threaded points on the side corners of the Acheron cabinet allow the unit to be fixed to floors with uptilt or downtilt using optional mounting brackets. The Acheron can also be mounted on top of the Acheron LF loudspeaker, also with uptilt or downtilt, using optional stacking brackets..

Features
  • Small footprint and narrow width are ideal for small venues or fill applications
  • Amazing power-to-size ratio
  • Exceptional linearity and transient reproduction at any level, high peak power output, and extremely low distortion
  • Self-powered to simplify setup and increase reliability
  • Flexible rigging for flown and ground-stacked arrays
  • Integrates easily with Meyer Sound’s 750-LFC, 900-LFC, and LEOPARD loudspeakers
Applications
  • Small to medium-sized theaters
  • Larger theaters with use of Acheron LF
  • Re-recording stages
  • Production and postproduction studios


Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.

Used Meyer Sound Laboratories


Meyer Sound Laboratories is an American company based in Berkeley, California that manufactures self-powered loudspeakers, multichannel audio show control systems, electroacoustic architecture, and audio analysis tools for the professional sound reinforcement, fixed installation, and sound recording industries.
The company’s emphasis on research and measurement has resulted in the issuance of dozens of patents, including for the now-standard trapezoidal loudspeaker cabinet shape. Meyer Sound has pioneered other technologies that have become standard in the audio industry, including: processor-controlled loudspeaker systems, self-powered loudspeakers,curvilinear arraying, cardioid subwoofers, and source independent measurement.
Meyer Sound has consistently involved itself with advanced research beyond that connected to immediate product development, sometimes in conjunction with arms of the University of California, Berkeley. Some of this research has resulted in unusual products such as their parabolic sound beam and sound field synthesis loudspeakers. Other projects, such as the spherical loudspeaker research underway by Meyer Sound and CNMAT (Center for New Music and Audio Technologies) at UC Berkeley are still in the stage of pure research.


Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.

Octave: The difference between two frequencies where one is twice the other. For example, 200 Hz is an octave higher than 100 Hz. 400 Hz is one octave higher than 200 Hz.

Optical Digital Cable: Fiber optic cable that transfers digital audio signals as light pulses.

Outcue/Outq/Out-Point: These words all refer to the final few seconds of audio signifying the conclusion of the production.

Package: A completed and fully edited audio piece.

Passive: Not active. A passive crossover uses no external power and results in insertion loss. A passive speaker is one without internal amplification.

Phase: Time relationship between signals it’s all relative.

Power Output: A measure, usually in watts, of how much energy is modulated by a component.

Preamplifier: A control and switching component that may include equalization functions. The preamp comes in the signal chain before the amplifiers.

Pre Outs: Connectors that provide a line-level output of the internal preamp or surround processor.

Pre Outs/Main Ins: Connectors on a receiver that provide an interruptible signal loop between the output of the internal preamp or surround processor portion of the receiver and the input of the amplifier portion of the receiver.

Pre/Pro: A combination preamp and surround processor.

Processors: Anything that processes an incoming signal in some way. Surround processors, for example, can decode a Dolby Digital signal to send to an amp so you can hear it.

Pulse Code Modulation: (PCM) a way to convert sound or analog information to binary information (0s and 1s) by taking samples of the sound and record the resulting number as binary information. Used on all CDs, DVD-Audio, and just about every other digital audio format. It can sometimes be found on DVD-Video.

Q-and-A: Question and answer session.

Receiver: Any component that receives, or tunes, broadcast signals, be it NTSC, HDTV, DBS, or AM/FM radio. Typically refers to the single component that includes a preamp, surround processor, multichannel amplifier, and AM/FM tuner.

Reverberation: The reflections of sound within a closed space.

RF: Radio Frequency. Television signals are modulated onto RF signals and are then demodulated by your television’s tuner. VCRs and DBS receivers often include channel 3 or 4 modulators, allowing the output signal to be tuned by the television on those channels. Also, laser discs used an RF signal for modulating Dolby Digital 5.1 soundtracks on some movies. This requires an RF demodulator (usually referred to as an AC3-RF demodulator) before or in the surround processor to decode the signal.

RMS: Root Mean Square or the square root of the arithmetic mean (average) of the square’s set of values. A reasonably accurate method of describing an amplifier`s power output.

SACD: Super Audio CD. Enhanced audio format with up to six channels of high-resolution audio encoded using DSD. Requires an SACD player. Multichannel also requires a controller with six-channel analog or proprietary digital inputs for full playback.

Sampling Frequency: How often a digital sample is taken of an analog wave. The more samples taken, the more accurate the recording will be. You need to sample at a minimum of twice the highest frequency you want to capture. For example, the 44.1-kilohertz sampling rate of a CD cannot record sounds higher than 22.05 kilohertz.

Scener: A radio report in which the announcer is recorded at the same time and place as the background sound of an event.

Sensitivity: A measurement (in dB) of the sound-pressure level over a specified frequency range created by a speaker driven by 1 watt (2.83V at 8 ohms) of power with a microphone placed 1 meter away.

Signal-to-Noise Ratio: A comparison of the signal level relative to the noise level. Larger numbers are better.

Simultaneous Interpretation: This system allows attendees to hear the meeting in their own language.

Sound Bite: A portion of audio of someone speaking.

Sound field: The total acoustical characteristics of a space, such as ambience number, timing, and relative level of reflections ratio of direct to reflected sound RT-60 time etc.

Soundstage: The area between two speakers that appears to the listener to be occupied by sonic images. Like a real stage, a soundstage should have width, depth, and height.

Speaker: A component that converts electrical energy into acoustical energy.

SPL: Sound-Pressure Level. Measured in dB.

Subwoofer: A speaker designed to reproduce very low bass frequencies, usually those below about 80 Hz.

THX: Certification program for home theater equipment. Uses some proprietary features, but mostly assures a base quality level for a given room size. (See THX select or Ultra.) Is compatible with any and all soundtrack formats. Stands for either Tom Holman’s eXperiment, after the engineer who drafted the original standard, or is named after the company’s founder George Lucas first movie, THX 1138. Nobody agrees on which.

THX select: Certification program for speakers and receivers that assures a base level of quality and performance when played in a room that’s between 2,000 and 3,000 cubic feet.

User-Generated Content (UGC): Text, photos, video or audio supplied by the customers of a company.

Voicer: A radio report without background audio taken from a scene or otherwise.

Wrap: A radio report containing both the reporter and an actuality.
