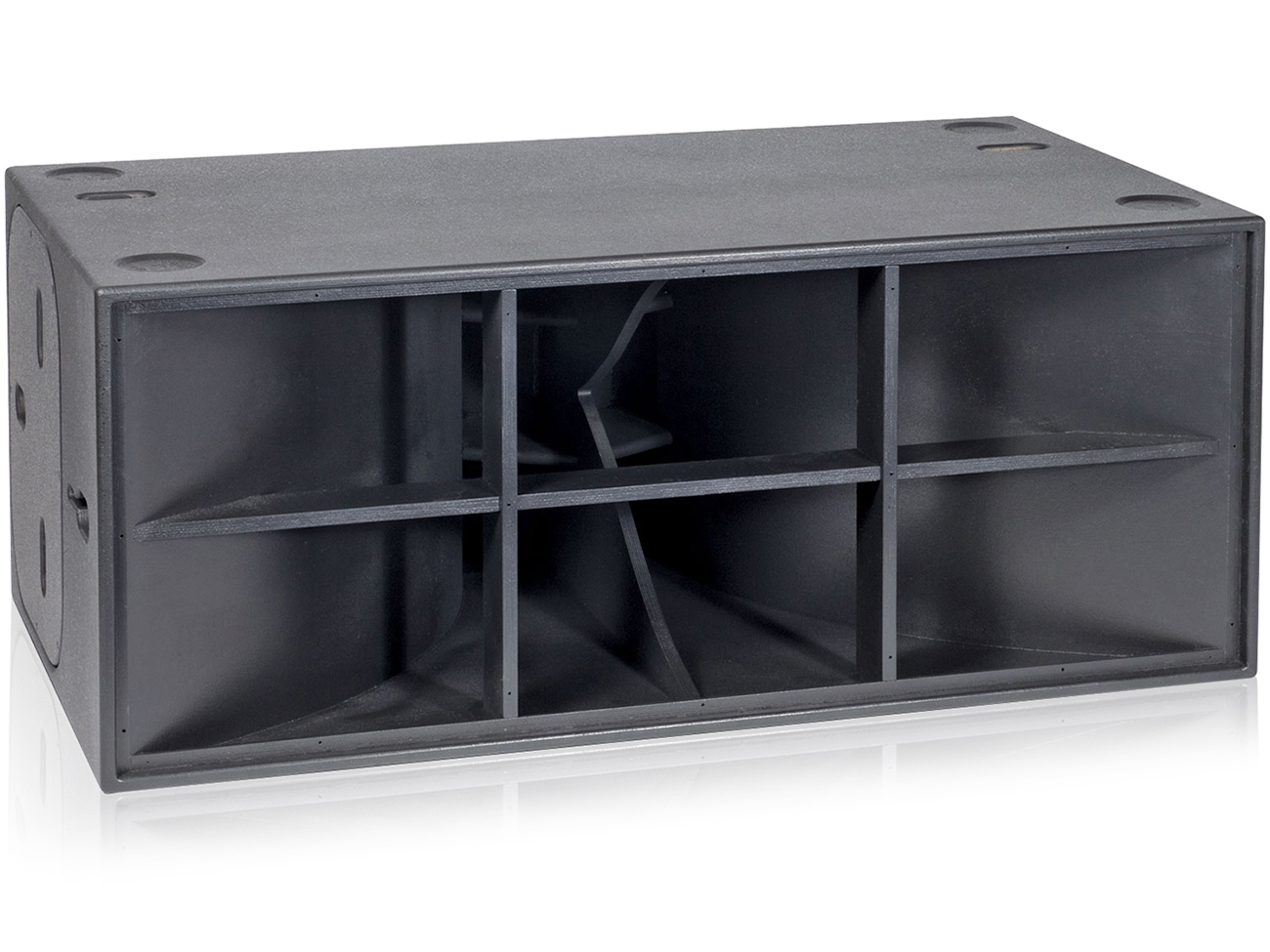

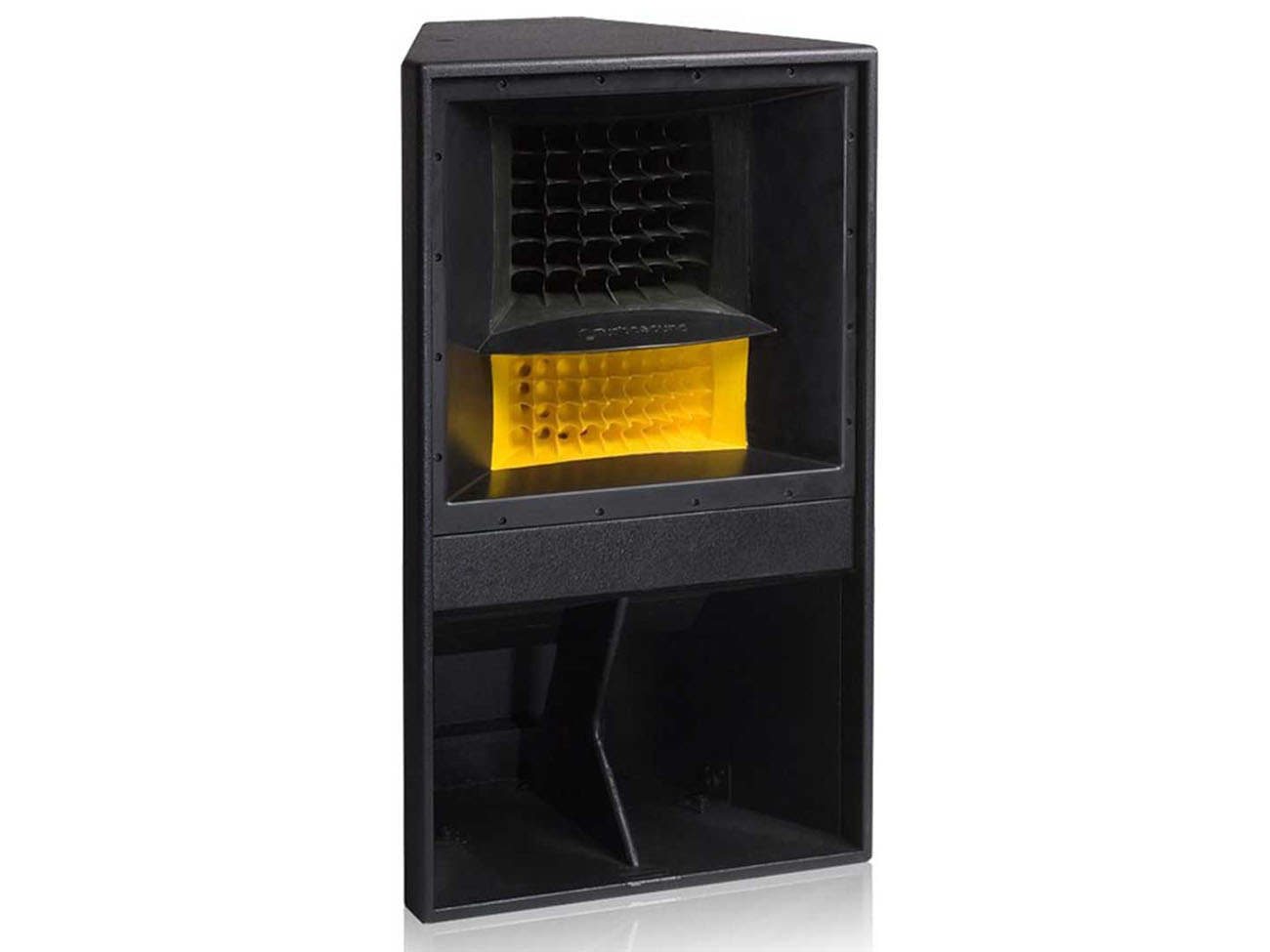

Turbosound Aspect TA-890 H/L-TA-500-TSW218 Sound Package Used, Second hand

Ref. code: 1.01.217

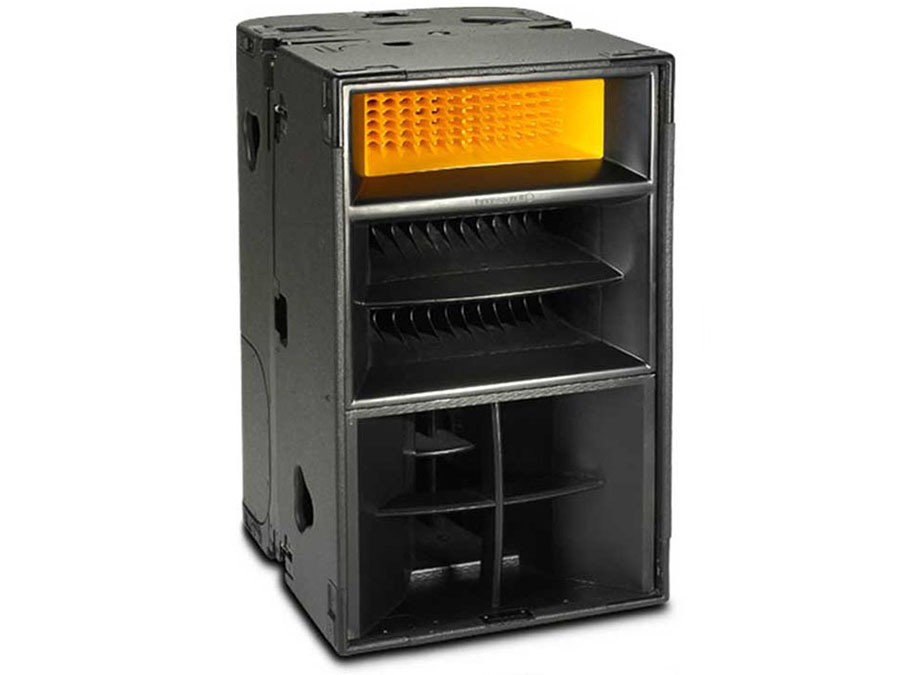

Aspect TA-890H

Aspect Series Engineering Information

The Aspect series is a range of high performance modular loudspeaker enclosures designed for use across a wide spectrum of sound reinforcement activities, easily scaleable to specific acoustical and venue requirements ranging from large scale indoor or outdoor concerts to corporate events, theatre shows and nightclub applications.
The aim of any sound reinforcement system is to distribute sound evenly, with consistent frequency response and in a predictable way,across all seats of an auditorium or listening area. An optimum method of attaining this goal is through the correct application of point source arrays to create a segment of a spherical wavefront. Not only does this approach provide an exceptionally well defined and coherent acoustic source, but it also allows for considerable flexibility when assembling arrays in both horizontal and vertical dimensions. In practice, the dispersion characteristics of a typical sound system are less than ideal because of the tendency for conventional high frequency exponential horns to ?beam? with increasing frequency. When arraying such horns,interference between adjacent sources is inevitable due to the variable curvature of the wavefront caused by the horn`s geometry, and this results in undesirable comb filtering effects.
Turbosound engineers, through intensive research and the subsequent implementation of innovative and patented Polyhorn designs, have identified and overcome these deficiencies and implemented solutions in the Turbosound Aspect series. Fundamental to the Polyhorn designs and applied in both high-mid and high frequency bands is the principle of dividing an exponential horn flare into a multiplicity of tapered waveguides. Doing so ensures that all path lengths from the diaphragm surface to horn mouth are identical, and consequently guarantees uniformity of phase of the wavefront at the horn mouth. The Polyhorn design effectively locates the acoustic centre well behind the motor system, forming a virtual point source whose radius coincides with the array curvature without requiring an excessively deep enclosure.
The TA-890H is a portable mid-high enclosure designed for flown and ground stacked touring applications. It houses high frequency, high-mid frequency and low-mid frequency elements arranged in a vertical orientation, and covering the frequency range from 100Hz to 20kHz.
The top section of the enclosure is dedicated to handling the high frequency band above 5kHz,being reproduced by two custom-designed HF drivers loaded by a high frequency Polyhorn device. The HF driver combines highly innovative patented design features to ensure exceptional high frequency performance and long term reliability. High-mid frequencies from 450Hz to 5kHz are handled by a proprietary 10? HMF drive unit on a further Polyhorn device optimised for high-mid frequencies. Two 10? low-mid frequency drivers loaded with TurboMid devices cover the remaining frequency range from 450Hz down to 100Hz.
A key feature of the Polyhorn designs is the very sharp cut-off at the edges of the coverage pattern, which all but eliminates the comb filtering effects commonly experienced between adjacent sources when arraying conventional horn designs. This makes it possible to achieve seamless arrayability in a very intuitive and predictable fashion.
Significant improvements in the individual drivers` power handling, and a subsequent reduction in power compression, have also been achieved through the use of high stability,high temperature neodymium magnet

Features
  • Total system optimisation
  • Very high SPL
  • Arrayable enclosure
  • Integral flyware
  • Rotatable mid-high section
  • Optimised truck pack
  • Very compact enclosures
  • Seamless arrayability
Applications
  • Stadiums and arenas
  • Touring and festivals
  • Regional concert touring
  • Theatre and Corporate
  • Dance clubs

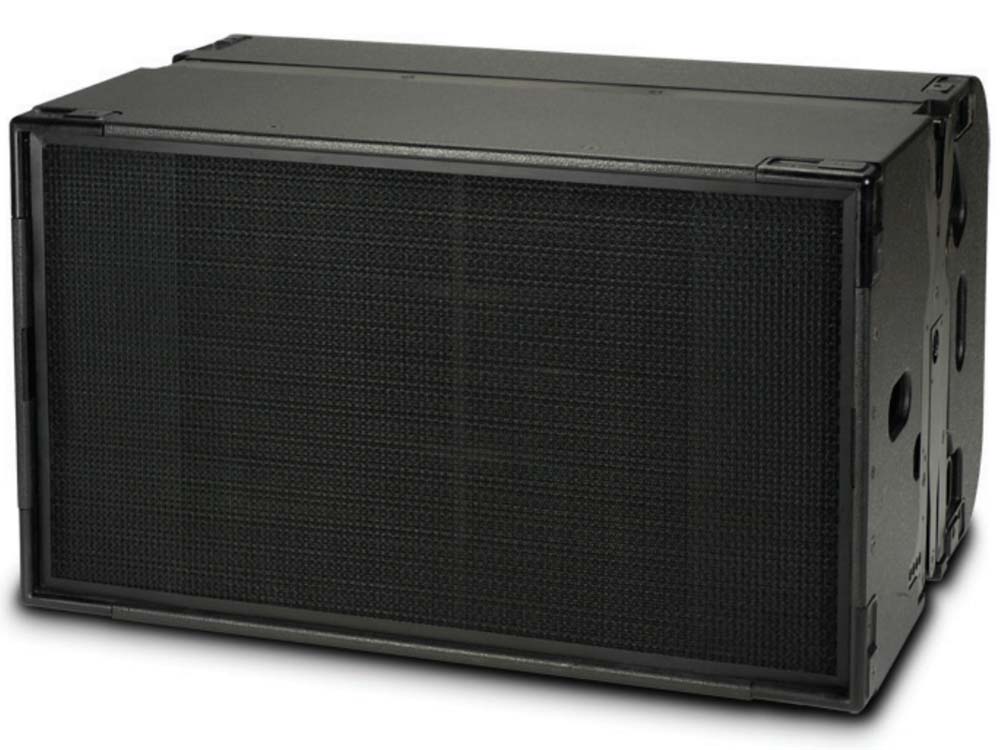

Aspect TA-890L

The TA-890L is a low frequency touring enclosure housing two high efficiency 15? drivers loaded with TurboBass devices in a portable cabinet covering the frequency range from 45Hz to 100Hz.
It is compatible with the TA-890H mid-high enclosure, and since it is fitted with both vertical and horizontal flying systems, it can be flown in clusters together with TA-890H enclosures. The flying hardware and corner mouldings also provide a locking mechanism to allow the enclosures to be safely ground stacked.Although integral to the box, the flying systems can easily be removed for safety testing.
Cabinet construction is based around pre-bent 9-ply beech plywood, this entirely eliminates two cabinet corners, reducing internal reflections as well as greatly increasing cabinet strength.
Thermal performance from the LF drivers has been greatly improved by using neodymium magnet structures which reduce power compression to negligible levels. Cabinet dimensions have been carefully chosen to allow the boxes to be optimally truck packed in the most common US and European vehicles without wasted space.
A rear panel carries two Speakon NL4MP connectors and the cabinet is fitted with ergonomically placed flush handles for easy lifting and carrying. Wheel dollies are also available to aid handling and trucking.

Features
  • Double 15? LF drivers
  • Total system optimisation
  • Very high SPL
  • Very compact enclosure
  • Integral rigging systems
Applications
  • Stadiums and arenas
  • Touring and festivals
  • Regional concert touring
  • Theatre and Corporate
  • Dance clubs
