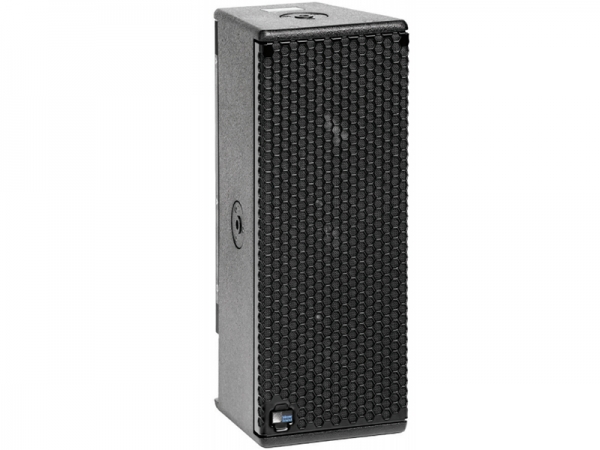

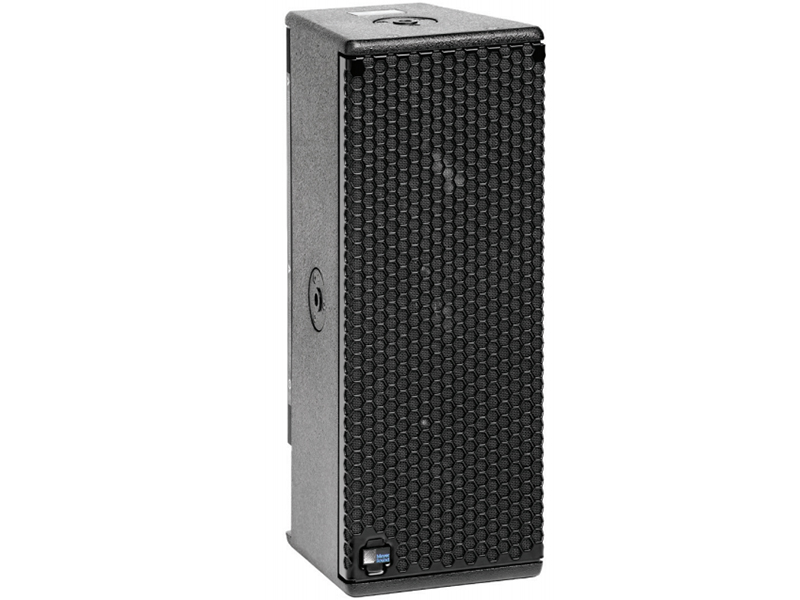

Meyer Sound UPM-2XP Used, Second hand

Ref. code: 1.04.482

UPM-2XP : Ultracompact Narrow Coverage Loudspeaker

The UPM‑1XP, with IntelligentDC technology, is a compact, externally-powered, wide-coverage loudspeaker for professional sound reinforcement. It offers the same high sound pressure levels, low distortion, and uniform directional control as the UPM‑1P but with the added flexibility of external DC power—enabling lengthy cable runs without AC conduits. Ideal usage of the UPM‑1XP is for applications requiring wide‑coverage in a small, inconspicuous cabinet where AC cabling is not feasible.
As a standalone loudspeaker, use the UPM‑1XP for vocal reinforcement, frontfill coverage, or delay coverage for under‑balcony applications. For full-range systems, pair the UPM‑1XP with Meyer Sound’s UMS‑1XP ultracompact subwoofer with IntelligentDC technology.
The UPM‑1XP’s high-frequency section includes a 1-inch metal dome tweeter on a constant-directivity, high-frequency horn with a 100° beamwidth. The low/mid-frequency section includes two 5-inch cone transducers that work in parallel at low frequencies— delivering a combined acoustic output—with one of the drivers rolling off above 320 Hz to prevent interference in the crossover region due to comb filtering effects. A three-channel amplifier, which includes active crossover, driver protection, and frequency and phase correction circuitry, powers the proprietary drivers that Meyer Sound manufactures at its factory in Berkeley, California.
With IntelligentDC technology, the UPM‑1XP receives DC power and balanced audio from a single loudspeaker connector, available as Phoenix 5-pin male, sealed SwitchCraft EN3 5-pin male, or sealed ECO‑M 7-pin male. Powering the unit from an external source eliminates the need for wiring conduits while still preserving the advantages of self-powered systems. The UPM‑1XP’s amplifier and signal-processing circuits store DC power and tolerate voltage drops, thereby accommodating light-gauge cables and lengthy cable runs.
The UPM-1XP requires a Meyer Sound IntelligentDC external power supply. For larger installations, the single-space rack-mount MPS‑488HP IntelligentDC power supply unit distributes DC power and balanced audio to up to eight UPJunior‑XP loudspeakers or other Meyer Sound IntelligentDC loudspeakers. For smaller installations, the MPS-482HP IntelligentDC power supply offers two channels of audio and DC power. Composite multiconductor cables, such as Belden 1502 or equivalent, can deliver both DC power and balanced audio to loudspeakers at cable lengths up to 150 feet with just 1 dB of loss in peak SPL using 18 AWG wire. Longer cable runs are possible with heavier gauge wires.
Meyer Sound’s RMS remote monitoring system, which offers comprehensive monitoring of loudspeaker parameters from a Mac or Windows-based computer running Compass control software, is optionally available for the MPS‑488HP.
Meyer Sound coats the UPM‑1XP cabinet with a slightly textured black finish and includes three threaded, recessed nut plates (3/8 in-16 or metric M10). Optional rigging hardware includes the MYA‑UPM mounting yoke, MUB‑UPM U-bracket, and MSA‑UPM stand adapter. Other UPM‑1XP options include weather protection and custom color finishes for fixed installations and installations with specific cosmetic requirements.


Features & Benefits
  • IntelligentDC technology affords the flexibility of lengthy cable runs without AC conduits
  • Extraordinary fidelity and power capability delivered in an ultracompact package
  • Metal dome tweeter provides a smooth high-frequency response
  • Wide, symmetrical pattern covers a broad listening area
  • Unique crossover design eliminates combing and yields a consistent midrange response
  • Exceptional SPL to size ratio supports a variety of applications
Applications
  • Frontfill and under-balcony fill coverage
  • Theatrical sound reinforcement
  • Portable and installed AV systems
  • Houses of worship
  • Compact voice reinforcement systems

Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.

Used Meyer Sound Laboratories


Meyer Sound Laboratories is an American company based in Berkeley, California that manufactures self-powered loudspeakers, multichannel audio show control systems, electroacoustic architecture, and audio analysis tools for the professional sound reinforcement, fixed installation, and sound recording industries.
The company’s emphasis on research and measurement has resulted in the issuance of dozens of patents, including for the now-standard trapezoidal loudspeaker cabinet shape. Meyer Sound has pioneered other technologies that have become standard in the audio industry, including: processor-controlled loudspeaker systems, self-powered loudspeakers,curvilinear arraying, cardioid subwoofers, and source independent measurement.
Meyer Sound has consistently involved itself with advanced research beyond that connected to immediate product development, sometimes in conjunction with arms of the University of California, Berkeley. Some of this research has resulted in unusual products such as their parabolic sound beam and sound field synthesis loudspeakers. Other projects, such as the spherical loudspeaker research underway by Meyer Sound and CNMAT (Center for New Music and Audio Technologies) at UC Berkeley are still in the stage of pure research.


Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.

Active: Powered. An active crossover is electrically powered and divides the line-level signal prior to amplification. An active speaker includes an active crossover and built-in amplifier.

Actuality: Audio from an announcer speaking.

Amplifier: A component that increases the gain or level of an audio signal.

Balanced Input: A connection with three conductors: two identical signal conductors that are 180 degrees out of phase with each other, and one ground. This type of connection is very resistant to line noise.

Bandpass: A two-part filter that cuts both higher and lower frequencies around a center band. A bandpass enclosure cuts high frequencies by acoustic cancellation and low frequencies by natural physical limitations on bass response.

Bandwidth: In audio, the range of frequencies a device operates within. In video, the range of frequencies passed from the input to the output. Bandwidth can also refer to the transmission capacity of an electronic communications device or system the speed of data transfer,is very important when planning a meeting for the attendees to stay connected.

Bass: Low frequencies those below approximately 200 Hz.

Bi-Wiring: A method of connecting an amplifier or receiver to a speaker in which separate wires are run between the amp and the woofer and the amp and the tweeter.

Boost: To increase, make louder or brighter opposite of attenuate.

Bridging: Combining two channels of an amplifier to make one channel that more powerful. One channel amplifies the positive portion of an audio signal and the other channel amplifies the negative portion, which are then combined at the output.

CD: Compact Disc. Ubiquitous digital audio format. Uses 16-bit/44.1-kHz sampling rate PCM digital signal to encode roughly 74 or 80 minutes of two- channel, full-range audio onto a 5-inch disc.

CD-R: Recordable Compact Disc.

CD-RW: Rewritable Compact Disc.

Channel: In components and systems, a channel is a separate signal path. A four-channel amplifier has at least four separate inputs and four separate outputs.

Coloration: Any change in the character of sound (such as an overemphasis on certain tones) that reduces naturalness.

Crossover: A component that divides an audio signal into two or more ranges by frequency, sending, for example, low frequencies to one output and high frequencies to another. An active crossover is powered and divides the line-level audio signal prior to amplification. A passive crossover uses no external power supply and may be used either at line level or, more commonly, at speaker level to divide the signal after amplification and send the low frequencies to the woofer and the high frequencies to the tweeter.

Crossover Frequency: The frequency at which an audio signal is divided. 80 Hz is a typical subwoofer crossover point and is the recommended crossover point in theatrical and home THX systems. Frequencies below 80 Hz are sent to the subwoofer signals above 80 Hz are sent to the main speakers.

Cut: To reduce, lower opposite of boost.

Decibel (dB): A logarithmic measurement unit that describes a sound`s relative loudness, though it can also be used to describe the relative difference between two power levels. A decibel is one tenth of a Bel. In sound, decibels generally measure a scale from 0 (the threshold of hearing) to 120-140 dB (the threshold of pain). A 3dB difference equates to a doubling of power. A 10dB difference is required to double the subjective volume. A 1dB difference over a broad frequency range is noticeable to most people, while a 0.2dB difference can affect the subjective impression of a sound.

Delay: The time difference between a sonic event and its perception at the listening position (sound traveling through space is delayed according to the distance it travels). People perceive spaciousness by the delay between the arrival of direct and reflected sound (larger spaces cause longer delays.

Diaphragm: The part of a dynamic loudspeaker attached to the voice coil that produces sound. It usually has the shape of a cone or dome.

Diffusion: In audio, the scattering of sound waves, reducing the sense of localization. In video, the scattering of light waves, reducing hot spotting, as in a diffusion screen.

Digital Audio Server: Essentially a hard drive, a digital audio server stores compressed audio files (like MP3 or WMA). Most include the processing to make the files, and all have the ability to play them back.

Direct-Stream Digital: A format for encoding high-resolution audio signals. It uses a 1-bit encoder with a sampling rate of 2,822,400 samples per second (verses 44,100 for CD). Used to encode six high-resolution channels on SACD.

Dispersion: The spread of sound over a wide area.

Distortion: Any undesired change in an audio signal between input and the output.

DNR: Dynamic Noise Reduction. A signal-processing circuit that attempts to reduce the level of high-frequency noise. Unlike Dolby NR, DNR doesn't require preprocessing during recording.

Dolby B: A noise-reduction system that increases the level of high frequencies during recording and decreases them during playback.

Dolby C: An improvement on Dolby B that provides about twice as much noise reduction.

Dolby Digital: An encoding system that digitally compresses up to 5.1 discrete channels of audio (left front, center, right front, left surround, right surround, and LFE) into a single bitstream, which can be recorded onto a DVD, HDTV broadcast, or other form of digital media. When RF-modulated, it was included on some laser discs, which requires an RF-demodulator before the signal can be decoded. Five channels are full-range the .1 channel is a band-limited LFE track. A Dolby Digital processor (found in most new receivers, preamps, and some DVD players) can decode this signal back into the 5.1 separate channels. Most films since 1992`s Batman Returns have been recorded in a 5.1 digital format, though a number of films before that had 6-channel analog tracks that have been remastered into 5.1.

Dolby EX: An enhancement to Dolby Digital that adds a surround back channel to 5.1 soundtracks. The sixth channel is matrixed from the left and right surround channels. Often referred to as 6.1. Sometimes referred to as 7.1 if the system uses two surround back speakers, even though both speakers reproduce the same signal. Software is backwards-compatible with 5.1 systems, but requires an EX or 6.1 processor to obtain additional benefit.

Dolby Pro Logic: An enhancement of the Dolby Surround decoding process. Pro Logic decoders derive left, center, right, and a mono surround channel from two-channel Dolby Surround encoded material via matrix techniques.

Dolby Pro Logic II: An enhanced version of Pro Logic. Adds improved decoding for two-channel, non-encoded soundtracks and music.

Driver: A speaker without an enclosure also refers to the active element of a speaker system that creates compressions and rarefactions in the air.

DSP: Digital Signal Processing. Manipulating an audio signal digitally to create various possible effects at the output. Often refers to artificially generated surround effects derived from and applied to two-channel sources.

DTS: Digital Theater Systems. A digital sound recording format, originally developed for theatrical film soundtracks, starting with Jurassic Park. Records 5.1 discrete channels of audio onto a handful of laser discs, CDs, and DVDs. Requires a player with DTS output connected to a DTS processor.

DTS ES: An enhanced version of the 5.1 DTS system. Like Dolby's Surround EX, a sixth channel is added. In some cases (DTS ES Discrete), the sixth channel is discrete. Software is backwards-compatible with 5.1 systems, but requires an ES or 6.1 processor to obtain additional benefit. Neo: 6 is a subset of DTS ES that creates 6.1 from material with fewer original channels.

Dynamic Range: The difference between the lowest and the highest levels in audio, it&'s often expressed in decibels. In video, it's listed as the contrast ratio.
