NEXO STM M46-M28-B112-S118 Turnkey Sound Package Used, Second hand

Ref. code: 1.01.593

STM

Scale Through Modularity

For too long now, the business of a sound rental company has been dictated by system manufacturers. You need one type of system to be in the touring market, another for corporate jobs, and so on. It all adds up to a lot of boxes that often spend more time in the warehouse than they do on the road. STM changes all that with a system that works the way you work.

Overview

The concept of Scale Through Modularity delivers a new level of versatility, enabling contractors to design a wide range of systems from just 4 core modules. And in applications large and small, these systems can significantly outperform existing solutions. Of course increased versatility brings a welcome improvement in return on investment. But with STM, that’s just the start. From system storage and configuration, through transportation and rigging, to wiring and amplification, STM delivers important operational and logistical cost savings at every stage of the process.

System Design

Designing and configuring the perfect STM system is easy using free NS-1 software – a powerful and intuitive system configuration and simulation tool with an intuitive drag and drop interface, ensuring uniform SPL coverage of any NEXO system in any venue.

Technology

STM represents an important achievement in line array technology and incorporates a number of patented developments including a 3D Hyperbolic Reflector for HF summing without interference, an acoustic nozzle to ensure smooth airflow in the S118 sub venting, a new vent design for improved efficiency in the M28 and M46 modules, and CCD patented technology for variable horizontal dispersion in the M28 omni module, along with key developments in the rigging system.

Modules

The STM system comprises 4 proportionallly-sized modules from which systems of any size and scale can be configured: M28 Omi-Purpose, M46 Main, B112 Bass and S118 Sub. Configuration possibilities include M28 Omni or M46 Main cabinets only, Omni/Main + Bass, Omni/Main + Sub, Omni/Main + Bass + Sub, any of which can be supplemented by the M28 Omni module operating as a downfill

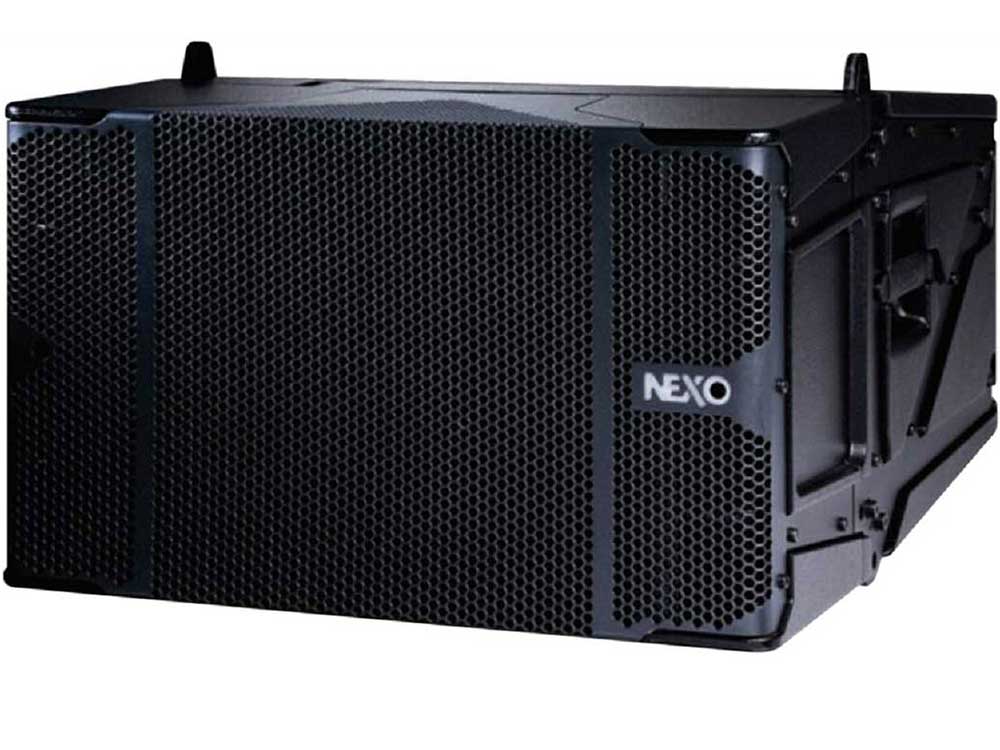

STM M46 Main Module

Injection-moulded high-power cabinet with innovative components for enhanced performance. Flat-membrane drivers ensure completely even and full-range coverage over entire 90° horizontal dispersion. HF frequency range remains completely linear, using Ketone Polymer diaphragms that enhance tonal response and long throw.

Features
  • 4 x 6.5 inch LF/MF Drivers
  • 4 x HF Compression Drivers
  • 145dB peak SPL
  • Frequency response: 85Hz-20kHz
  • H350mm/W575mm/D715mm
  • 59Kg/130lb
  • Dispersion 90˚ H x 0-10˚V

STM M28 Omni-purpose Module

Injection-moulded all-purpose loudspeaker cabinet which fulfils the role of downfill, providing 90°/120° of horizontal dispersion and 0° to 15° splaying angle between modules. Same width as M46, 2/3 height, the M28 can also be used independently from M46 or B112.

Features
  • 2 x 8 inch LF Drivers
  • 2 x HF Compression Driver
  • 141dB peak SPL
  • Frequency response: 65Hz-19kHz
  • H234mm/W575mm/D653mm
  • 37Kg/82lb

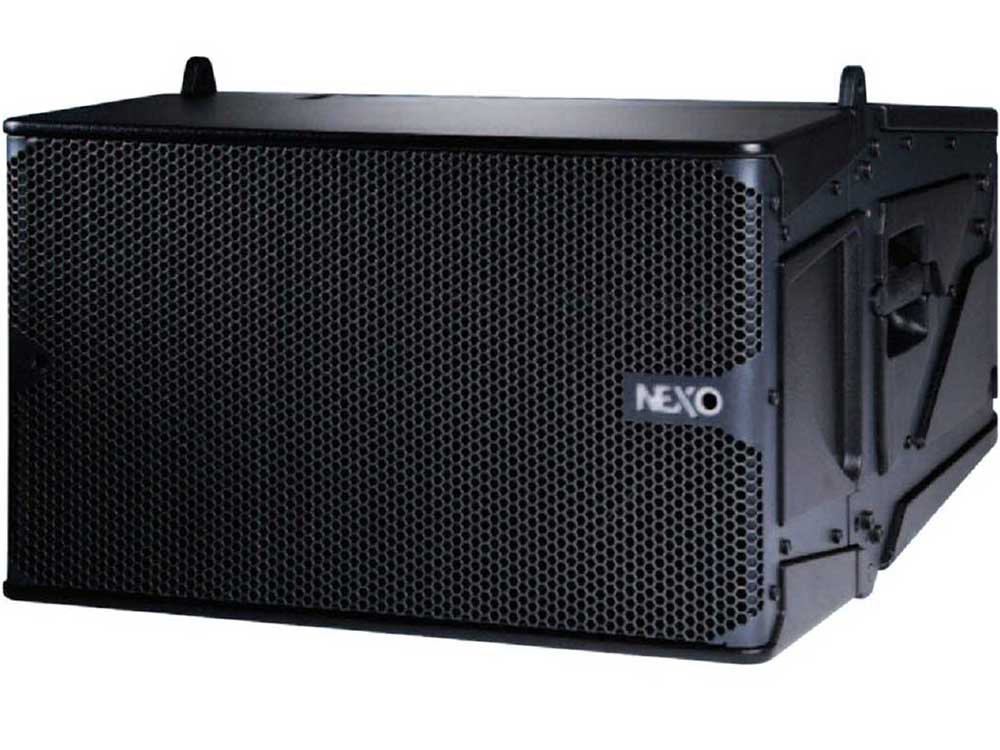

STM B112 Bass Module

Injection-moulded bass cabinet featuring a Neodymium high excursion 3000W 12'' bass driver with 4'' voice coil. It has the same format dimensions, weight, gravity centre as the M46. The hybrid horn-loaded design maximizes the efficiency of the driver, delivering 6dB more than a standard front-loaded driver in this frequency range.

Features
  • 1 x 3000W +/- 3cm excursion 12 inch LF Driver
  • 141dB peak SPL
  • Frequency response: 63Hz-200Hz
  • H350mm/W575mm/D715mm
  • 59Kg/130lb

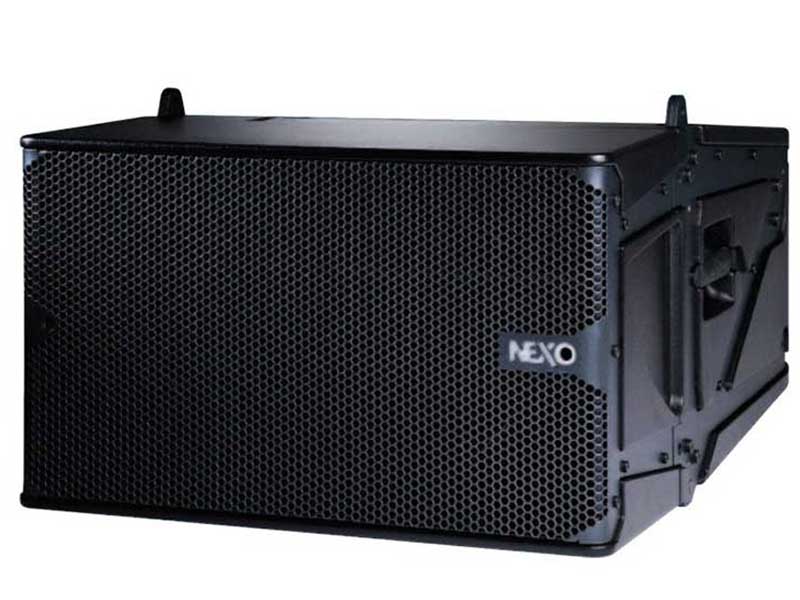

STM S118 Sub Module

Sub-bass cabinet featuring a Neodymium high excursion 3000W 18” driver. A bandpass load ensures SPL output equivalent to conventional dual 18” subbasses. Same width, double the height of M46 main cabinet, double height of main cabinet so the S118 can be flown in the array or ground-stacked in line. Can be run in omnidirectional or cardioid sub mode.

Features
  • 1 x 18 inch LF Driver
  • 143dB peak SPL
  • Frequency response: 25Hz-85Hz
  • H700mm/W575mm/D715mm
  • 85Kg/187lb
  • Omni or cardioid modes
